Produkto aprašymas

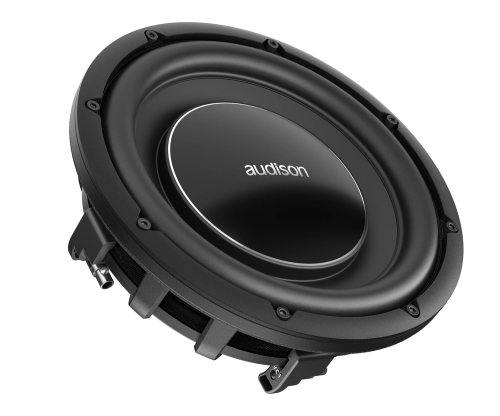

Audison AV 10 D4 II - kompaktiškas 250 mm (10 colių) automobilinis žemų dažnių garsiakalbis iš VOCE II serijos, skirtas galingam, tiksliam ir kontroliuojamam žemųjų dažnių atkūrimui. Dviguba 4 Ω balso ritė ir 550 W RMS nominali galia leidžia garsiakalbį lengvai priderinti prie įvairių stiprintuvų. Plona konstrukcija puikiai tinka automobiliams, kuriuose montavimo vieta ribota, o tvirtas aliuminio korpusas ir efektyvi aušinimo sistema užtikrina stabilų veikimą net esant dideliam garsumui. Garsiakalbis pritaikytas kompaktiškoms 12–14 l uždaro tipo dėžėms, todėl leidžia mėgautis sodriais žemaisiais dažniais neužimant daug vietos.
Pagrindinės savybės
250 mm (10 colių) žemų dažnių garsiakalbis su plona konstrukcija.
550 W RMS nominali ir 1100 W maksimali galia.
Dviguba 4 Ω balso ritė suteikia daugiau prijungimo prie stiprintuvo galimybių.
38,6 mm CCAW balso ritė užtikrina efektyvų veikimą ir gerą šilumos išsklaidymą.
A.V.C. aušinimo sistema padeda sumažinti balso ritės perkaitimo riziką.
Tvirtas lieto aliuminio korpusas su integruotais laidų laikikliais.
Polipropileno membrana su R.R.F. sutvirtinimo konstrukcija užtikrina didesnį standumą ir tikslų garso atkūrimą.
FEM metodu optimizuota magnetinė sistema pagerina garsiakalbio veikimo efektyvumą.
Spyruokliniai prijungimo gnybtai pritaikyti iki 8 AWG storio laidams.
Pritaikytas kompaktiškoms 12–14 l uždaro tipo dėžėms.
Komplekte yra juodos metalinės apsauginės grotelės ir tvirtinimo varžtai.
Svarbu: Garsiakalbis parduodamas be dėžės. Jam reikalingas atskiras stiprintuvas ir tinkamas akustinis korpusas
AV 10 D4 II Subwoofer Driver | Slim | 250 mm | Grille included
Compact in size, uncompromising in performance. The AV 10 D4 II is the 10-inch subwoofer of the VOCE II line, designed to deliver fast, impactful and finely controlled bass within reduced enclosure volumes.Its dual 4-ohm voice coil configuration offers maximum installation versatility, while the 1.5-inch CCAW voice coil and FEM-optimized magnetic structure ensure precise response and excellent thermal stability, even during demanding playback.Despite its compact footprint, the AV 10 D4 II features the same advanced technologies as its 12-inch counterpart: the Radial Reinforcement Framework for superior mechanical strength, an extended-profile dust cap for enhanced damping, and the proprietary Airflow Venting Cooling system for continuous heat dissipation. Optimized to perform at its best in compact sealed enclosures (12–14 L / 0.4–0.5 ft³), it offers deep, controlled bass response even in space-limited setups, making it an ideal choice for refined systems where detail and dynamics must coexist in perfect balance. Every element reflects the VOCE II philosophy: precision engineering, signature low-frequency response, and unmistakable Italian design.
Features
1. 550 W RMS continuous power handling
Exceptional thermal stability and mechanical robustness ensure reliable management of 550 W RMS continuous power, allowing sustained high-performance bass output.
2. 1.5 in. (38.6 mm) CCAW voice coil (Copper-Clad Aluminum Wire)
Combines exceptional thermal handling with reduced mass, maximizing responsiveness, precision, and durability under demanding listening conditions
3. Airflow Venting Cooling (A.V.C.) prevents voice-coil overheating-related limitations
Proprietary AVC technology optimizes airflow and cooling through strategically placed internal channels, efficiently dissipating heat and maintaining consistent performance at high SPL.
4. Optimized for Compact Sealed Enclosures
Engineered to perform at its best in compact sealed enclosures (12–14 L / 0.4–0.5 ft³), offering deep, controlled bass response even in space-limited setups.
5. Protective Metal Mesh Grille Included
Comes with a durable black mesh grille and mounting screws, providing reliable cone protection without compromising acoustic transparency or visual elegance.
6. Radial Reinforcement Framework (R.R.F.)
Integrates internal structural rays beneath the cone, significantly increasing mechanical rigidity and effectively reducing deformation risks during high-excursion operations, ensuring consistent performance, precision, and reliability over time.
7. Die-cast aluminum basket with integrated cable-routing hooks
Robust aluminum basket maximizes rigidity and thermal dissipation, while integrated cable-management hooks facilitate clean installations even in confined spaces
8. Extended-Profile Dust Cap with VOCE II Styling
The enlarged dust cap, featuring refined detailing consistent with the VOCE II speaker range, is engineered through FEM simulation to optimize cone rigidity and structural damping.
9. Dual Integrated Cable Routing Hooks
Two molded guides built into the outer structure simplify neat and secure cable management. These hooks are entirely within the subwoofer’s footprint, ensuring compatibility with tight installation spaces.
10. Die-Cast Aluminum Basket with Magnet Cover
Offers excellent mechanical damping, improved heat dissipation, and stable airflow, maintaining structural integrity and high performance over time.
11. Spring-Loaded Horizontal Terminals (8 AWG Ready)
Side-by-side heavy-duty terminals allow short, clean wiring paths and simplified series or parallel configurations, supporting high-current cable connections.
12. FEM-Optimized Magnetic Circuit Geometry
The entire magnetic assembly has been engineered using Audison’s proprietary FEM simulation platform to concentrate the magnetic flux precisely around the voice coil gap, enhancing efficiency, responsiveness, and control.
13. eID Technology
Features Elettromedia’s eID system for full traceability, product authentication, and direct access to technical documentation and support.
Techniniai duomenys
Nominal diameter
250 mm (10 in)
Impedance
4+4 Ohm
Power Handling - Peak
1100 W
Power Handling - Continuous
550 W
Sensitivity
83.5 dB
Frequency Response
25 - 400 Hz
Voice Coil Ø
38.6 mm (1.5 in)
Chassis Material
ALUMINIUM
Magnet Material
HIGH DENSITY FLUX FERRITE
Magnet size D x d x h
134*55*36 mm (5,28*2,17*1.41 in)
Voice Coil Material
CCAW
Former Material
GLASS FIBER
Cone Material
POLYPROPYLENE
Surround Material
NITRILE RUBBER (NBR)
Xmax
16.8 mm (0.66 in)
Xmech
20 mm (0.79 in)
Voice Coil Winding Height
37 mm (1.46 in)
Gap Height
7 mm (0.28 in)
Electric-acoustic Specs
D
368 cm² (57.04 in²)
Re
1.82 Ohm
Fs
36 Hz
Le
1.8 mH
Vas
14.8 l (0.523 ft)
Mms
250 g (8.819 oz)
Cms
0.08 mm/N
BL
11.2 T•m
Qts
0.72
Qes
0.823
Qms
5.62
Reference Efficiency
83.5
Dimensions
AV 10 D4 II
Dimension A
274.5 mm (10.81 in)
Dimension B
232 mm (9.13 in)
Dimension C
102.5 mm (4.04 in)
Dimension D
82.6 mm (3.25 in)
Dimension E
245 mm (9.65 in)
Dimension F
40
Dimension C1
103 mm (4.0551 in)
Dimension C2
128.5 mm
Dimension D1
14.5 mm
