Audison AV 10 D2 II, žemų dažnių garsiakalbis, 250 mm, 550 W RMS / 1100 W MAX, 2 × 2 Ω, 83.5 dB, 1 vnt. | nemokamas siuntimas

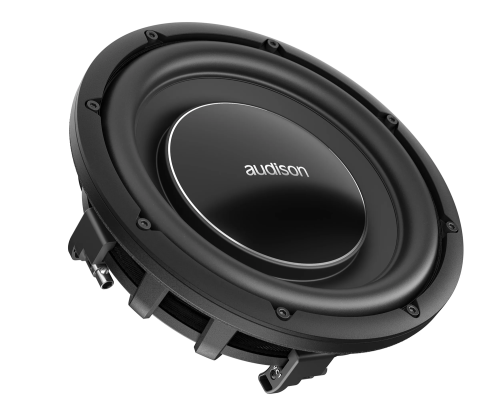

Audison AV 10 D2 II - kompaktiškas 250 mm (10 colių) automobilinis žemųjų dažnių garsiakalbis iš VOCE II serijos, skirtas giliam, tiksliam ir dinamiškam žemų dažnių atkūrimui. Dviguba 2 Ω balso ritė ir 550 W RMS nominali galia leidžia efektyviai išnaudoti stiprintuvo galimybes. Plona konstrukcija puikiai tinka automobiliams, kuriuose montavimo vieta ribota, o tvirtas aliuminio korpusas ir pažangi aušinimo sistema užtikrina stabilų veikimą net esant dideliam garsumui. Garsiakalbis pritaikytas nedidelėms uždaro tipo dėžėms, todėl leidžia mėgautis kokybiškais žemaisiais dažniais neužimant daug vietos.

Pagrindinės savybės

250 mm (10 colių) žemų dažnių garsiakalbis su plona konstrukcija.
550 W RMS nominali ir 1100 W maksimali galia.
Dviguba 2 Ω balso ritė suteikia lanksčias prijungimo prie stiprintuvo galimybes.
38,6 mm CCAW balso ritė užtikrina efektyvų veikimą ir gerą šilumos išsklaidymą.
A.V.C. aušinimo technologija padeda apsaugoti balso ritę nuo perkaitimo.
Tvirtas lieto aliuminio korpusas su integruotais laidų laikikliais.
Polipropileno membrana su R.R.F. sutvirtinimo konstrukcija užtikrina didesnį standumą ir tikslų garso atkūrimą.
FEM metodu optimizuota magnetinė sistema pagerina garsiakalbio veikimo efektyvumą ir kontrolę.
Spyruokliniai prijungimo gnybtai pritaikyti iki 8 AWG storio laidams.
Pritaikytas kompaktiškoms 12–14 l uždaro tipo dėžėms.
Komplekte yra juodos metalinės apsauginės grotelės ir tvirtinimo varžtai.

Svarbu: Garsiakalbis parduodamas be dėžės. Jam reikalingas atskiras stiprintuvas ir tinkamas akustinis korpusas

AV 10 D2 IISubwoofer Driver | Slim | 250 mm | Grille included
Designed for tight spaces and dynamic performance, the AV 10 D2 II delivers powerful, articulate low frequencies with the precision and control that define the VOCE II line.Its dual 2-ohm voice coil configuration provides greater flexibility for low-impedance system design, allowing optimal power transfer from high-performance amplifiers. The subwoofer features a 1.5-inch CCAW voice coil, FEM-optimized motor assembly and a die-cast aluminum basket with integrated cable-routing hooks—each detail engineered to ensure stability, thermal efficiency and long-term reliability.The extended-profile dust cap improves cone rigidity and damping, while the internal Radial Reinforcement Framework strengthens the mechanical structure during high-excursion operation. Airflow Venting Cooling technology ensures effective heat dissipation, preserving performance even under prolonged stress.Optimized to perform at its best in compact sealed enclosures (12–14 L / 0.4–0.5 ft³), the AV 10 D2 II delivers deep, clean and fast bass, ideal for systems where space is limited but sonic expectations are high. It is more than a compact subwoofer, it is a VOCE II-class component built to bring the emotion of music into every detail of your sound system.

Features

1. 550 W RMS continuous power handling

Exceptional thermal stability and mechanical robustness ensure reliable management of 550 W RMS continuous power, allowing sustained high-performance bass output.

2. 1.5 in. (38.6 mm) CCAW voice coil (Copper-Clad Aluminum Wire)

Combines exceptional thermal handling with reduced mass, maximizing responsiveness, precision, and durability under demanding listening conditions

3. Airflow Venting Cooling (A.V.C.) prevents voice-coil overheating-related limitations

Proprietary AVC technology optimizes airflow and cooling through strategically placed internal channels, efficiently dissipating heat and maintaining consistent performance at high SPL.

4. Optimized for Compact Sealed Enclosures

Engineered to perform at its best in compact sealed enclosures (12–14 L / 0.4–0.5 ft³), offering deep, controlled bass response even in space-limited setups.

5. Protective Metal Mesh Grille Included

Comes with a durable black mesh grille and mounting screws, providing reliable cone protection without compromising acoustic transparency or visual elegance.

6. Radial Reinforcement Framework (R.R.F.)

Integrates internal structural rays beneath the cone, significantly increasing mechanical rigidity and effectively reducing deformation risks during high-excursion operations, ensuring consistent performance, precision, and reliability over time.

7. Die-cast aluminum basket with integrated cable-routing hooks

Robust aluminum basket maximizes rigidity and thermal dissipation, while integrated cable-management hooks facilitate clean installations even in confined spaces

8. Extended-Profile Dust Cap with VOCE II Styling

The enlarged dust cap, featuring refined detailing consistent with the VOCE II speaker range, is engineered through FEM simulation to optimize cone rigidity and structural damping.

9. Dual Integrated Cable Routing Hooks

Two molded guides built into the outer structure simplify neat and secure cable management. These hooks are entirely within the subwoofer’s footprint, ensuring compatibility with tight installation spaces.

10. Die-Cast Aluminum Basket with Magnet Cover

Offers excellent mechanical damping, improved heat dissipation, and stable airflow, maintaining structural integrity and high performance over time.

11. Spring-Loaded Horizontal Terminals (8 AWG Ready)

Side-by-side heavy-duty terminals allow short, clean wiring paths and simplified series or parallel configurations, supporting high-current cable connections.
 

12. FEM-Optimized Magnetic Circuit Geometry

The entire magnetic assembly has been engineered using Audison’s proprietary FEM simulation platform to concentrate the magnetic flux precisely around the voice coil gap, enhancing efficiency, responsiveness, and control.

13. eID Technology

Features Elettromedia’s eID system for full traceability, product authentication, and direct access to technical documentation and support.

Techniniai duomenys

Nominal diameter
250 mm (10 in)
Impedance
2+2 Ohm
Power Handling - Peak
1100 W
Power Handling - Continuous
550 W
Sensitivity
83.5 dB
Frequency Response
25 - 400 Hz
Voice Coil Ø
38.6 mm (1.5 in)
Chassis Material
ALUMINIUM
Magnet Material
HIGH DENSITY FLUX FERRITE
Magnet size D x d x h
134*57*36 mm (5,28*2,27*1.41 in)
Voice Coil Material
CCAW
Former Material
GLASS FIBER
Cone Material
POLYPROPYLENE
Surround Material
NITRILE RUBBER (NBR)
Xmax
16.8 mm (0.66 in)
Xmech
20 mm (0.79 in)
Voice Coil Winding Height
37 mm (1.46 in)
Gap Height
7 mm (0.28 in)
Recommended Enclosure
13.2 l (0.466 ft)
Recommended Tuning
51 Hz
Note
The data below are specified with the VCs connected in series (2+2).
Electric-acoustic Specs
D
368 cm² (57.04 in²)
Re
3.25 Ohm
Fs
35 Hz
Le
4.1 mH
Vas
15.16 l (0.535 ft)
Mms
264 g (9.312 oz)
Cms
0.079 mm/N
BL
16.2 T•m
Qts
0.63
Qes
0.7
Qms
5.5
Reference Efficiency
83.5
General
Weight
5 kg
Dimensions

AV 10 D2 II
Dimension A
274.5 mm (10.81 in)
Dimension B
232 mm (9.13 in)
Dimension C
97 mm (3.82 in)
Dimension D
82.6 mm (3.25 in)
Dimension E
245 mm (9.65 in)
Dimension F
40
Dimension C1
103 mm (4.0551 in)
Dimension C2
128.5 mm
Dimension D1
14.5 mm

Dokumentai

Vartotojo vadovas (EN)
