Produkto aprašymas

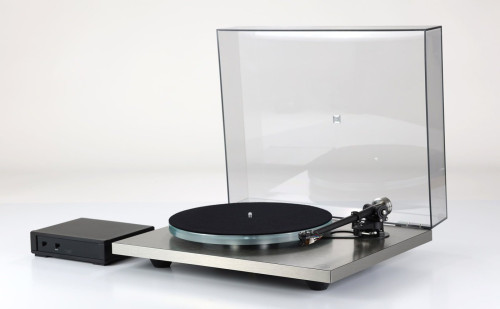

Rega Planar 6 RS Edition - specialios serijos aukštos klasės patefono grotuvas, perimantis svarbiausias technologijas iš Planar 8 modelio. Jame derinamas itin lengvas ir standus Tancast 8 korpusas, precizinis RB880 tonarmas, gamykloje sumontuota Nd9 MM kasetė bei Neo MK2 maitinimo blokas. Šis derinys užtikrina išskirtinį detalumą, tikslų greičio valdymą ir natūralų muzikos atkūrimą.
Pagrindinės savybės
RB880 precizinis tonarmas
Gamykloje sumontuota Rega Nd9 MM kasetė
Tancast 8 itin lengvas ir standus korpusas
16 mm dviejų sluoksnių Opti-White stiklo lėkštė
Du Rega Reference EBLT pavaros dirželiai
Neo MK2 išorinis maitinimo blokas
24 V mažo triukšmo sinchroninis variklis
Double Brace konstrukcija rezonansų mažinimui
Komplekte dulkių dangtis
The Planar 6 RS Edition (Rega Special) adopts many key engineering features from the next tier Planar 8 model whilst retaining the classic Rega form factor and dustcover. The ultra lightweight high rigidity plinth makes the perfect platform to mount the precision RB880 tonearm which is factory fitted and expertly aligned with the multi-award winning Nd9 moving magnet cartridge.
Classic styling, serious performer
The Rega Planar 6 RS Edition is constructed using our unique Tancast 8 foam core plinth finished with an aluminium metal skin HP laminate with matching edging. This assembly creates a highly ridged ultra-light platform, ideal for mounting advanced components whilst reducing resonance. Like the standard Planar 6, the RS Edition includes a custom matched Neo MK2 PSU, and a hand tuned low noise 24v motor which drives the aluminium sub platter. In addition, this is now driven via an upgraded CNC twin drive pulley and two Rega Reference EBLT drive belts for improved accuracy and speed control. To complete the package the precision RB880 tonearm (usually found on the Planar 8) is supplied mounted with the highly acclaimed Nd9 moving magnet cartridge to complete the ultimate Planar 6 package.
Key Features
RB880 tonearm with custom stainless balance weight
Nd9 Reference MM factory fitted as standard
CNC Twin drive motor pulley
Tancast 8 foam core plinth with HP laminate and metal skin
Dual Layer float glass Opti-white clear platter
Custom matched Neo Mk2 turntable power supply
Twin Reference EBLT drive belts
24v synchronous low noise precision motor
Double Brace Technology
Smoked dustcover supplied as standard
Lifetime warranty against manufacture defects
Product Details
Ultra lightweight plinth
Rega has pioneered the use of lightweight, rigid plinths over many years. Our unique, ultra-lightweight Tancast 8 foam core with a highly rigid phenolic resin skin (HPL) is the foundations of the standard Planar 6 and upper tier skeletal range. The Planar 6 RS Edition uses the same premium HPL combined with the stunning RS brushed metal aluminium skin with matching edging.
RB880 Precision Tonearm
Designed using the latest 3D CAD technology, the RB880 is the result of almost 40 years of tonearm design experience. This tonearm features an aluminium vertical bearing housing, a redesigned sleeve and vertical bearing shaft (both manufactured from stainless steel) to improve mounting stability and overall rigidity. The advanced tonearm tube is designed using intelligent redistribution of mass, ensuring this arm will exhibit fewer points of possible resonance.
The extreme levels of stability achieved, coupled with almost friction free movement from the high precision hand matched bearing assemblies, guarantee to gather more information from your vinyl than ever before. You will also find a Rega made, low capacitance phono cables terminated with high specification phono plugs.
24V AC synchronous motor
24V low noise synchronous precision motor and PCB assembly, fitted with a custom CNC twin drive machined aluminium pulley. Each motor is hand tuned to the Neo Mk2 PSU to minimise vibration and perfectly set speed.
Nd9 Reference Moving Magnet
Each Nd9 is meticulously hand-made by our highly skilled technicians. The Nd9 uses our most advanced “fine line” nude diamond profile, bonded to a Boron rod cantilever for maximum detail retrieval. This profile has an exceptionally small radii Monocrystalline manmade diamond with the minor radius being just 3µm (microns) as viewed from the top and 30µm in the vertical when viewed from the front. This profile allows immediate adjustment to very small changes in the vinyl due to the small contact area of the diamond which results in exceptional levels of detail being retrieved. The design uses brand new generator geometry with perfect symmetry to achieve highly accurate channel balance.
Double Brace Technology
The Planar 6 RS Editions plinth is strengthened further using our double brace system. Mounted specifically where the increased rigidity is required (between the tonearm mounting and the main hub bearing) this forms a structurally sound “stressed beam” assembly. This rigid plinth design prevents energy absorption and unwanted resonance, which will add unnatural distortions to the music. Equally, heavier mass can transfer more unwanted energy, such as motor or bearing noise directly into the rotating record. The use of braces instead of the complete skin allows double thickness phenolic resin in these key areas which directly addresses the issue of mass absorption and unwanted energy transmission.
Neo MK2 turntable power supply
The Neo MK2 PSU is an advanced turntable power supply providing user controllable fine speed adjustment, an advanced anti-vibration motor circuit, and the convenience of electronic speed change. The Neo MK2 vastly reduces motor noise and improves speed stability and rotational speed accuracy.
Techniniai duomenys
Tonearm
Hand assembled precision RB880
Motor
24 V low noise motor
Platter
16mm dual layer float glass - opti-white clear.
Connectivity
RCA - Phono
Power
Via Mini DIN from Neo PSU
Dimensions (lid closed)
447 x 117 x 360 mm
Weight (turntable)
5.4 Kg
Neo MK2 PSU
24 V protected by resettable fuse
Power consumption
7.2W
Voltage
24 V AC
Wall Power supply (wallwart)
Rega PS1 only
Speed control step size
0.01RPM
Neo PSU Dimensions
180 x 150 x 50 mm
