Naim NVC TT, korekcinis stiprintuvas patefonui, MM/MC, 42/61/67 dB, RIAA ±0,1 dB | nemokamas siuntimas

Naim NVC TT - aukštos klasės MM/MC fono korekcinis stiprintuvas, sukurtas maksimaliai išnaudoti vinilinių plokštelių skambesį. Jis palaiko tiek MM, tiek MC galvutes, siūlo reguliuojamą MC stiprinimą ir platų apkrovos nustatymų pasirinkimą. NVC TT sukurtas integracijai su Naim NSC 222 ir NAC 332, o naudojant specialų NPX TT maitinimo šaltinį galima pasiekti dar švaresnį ir detalesnį garsą.

Pagrindinės savybės

MM ir MC galvučių palaikymas
MM stiprinimas  42 dB
MC stiprinimas  61 arba 67 dB
16 MC varžos nustatymų
16 MC talpos nustatymų
RIAA tikslumas ±0,1 dB
Maksimali išvestis  8 Vrms
Suderinamas su NPX TT, NSC 222 ir NAC 332
Tvirtas aliuminio korpusas
Reguliuojamas Naim logotipo ryškumas

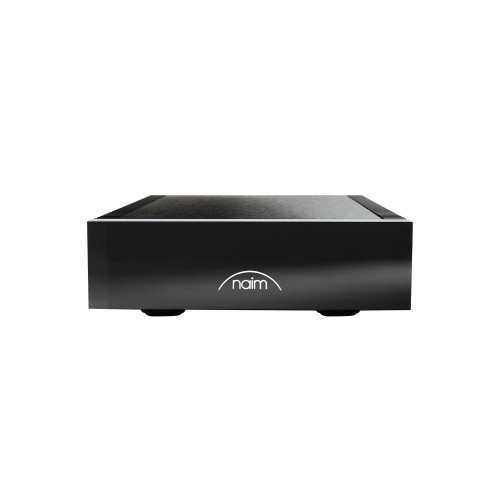

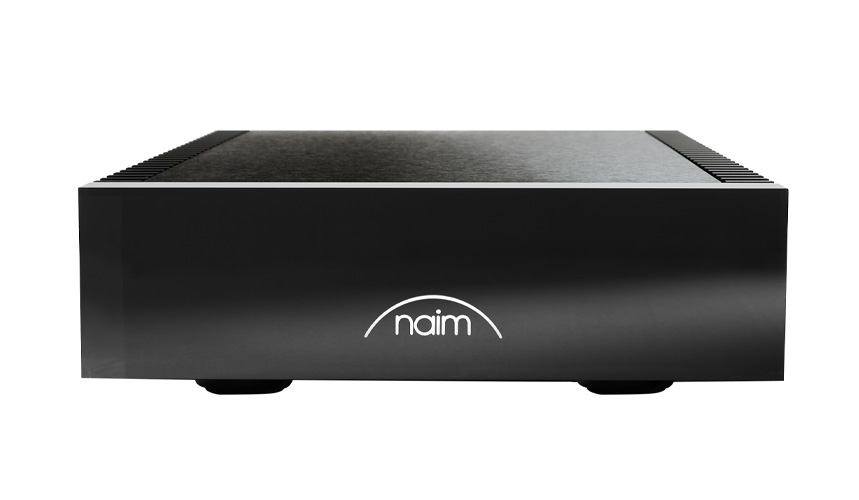

NVC TT
MM/MC phono preamplifier
Vinyl records have never sounded better than when played with the NVC TT phono preamplifier. This device is designed to work seamlessly with any turntable that uses MC cartridges or MM cartridges. It connects effortlessly to preamplifiers NAC 332 or NSC 222 to deliver crisp, clear audio with stunning clarity and detail. To achieve the ultimate audio experience, it is recommended to pair the NVC TT with its dedicated power supply, the NPX TT. With its user-friendly interface, the NVC TT phono preamplifier is the perfect addition to any audiophile's collection.

Purposeful materiality
The NVC TT features the finest audiophile components and undergoes highly precise measurements to produce uncompromising results. The NPX TT power supply is designed to provide even cleaner power to enhance the sound quality of the NVC TT.

The Story of Naim & Aluminium
The sleek design of the NVC TT combines premium materials and adjustable logo brightness, resulting in a contemporary yet timeless look. The founder of Naim, Julian Vereker, was a pioneer in using aluminium to wrap electronic components in order to protect delicate audio components from magnetic fields, unstable temperatures, and unwanted vibrations.

Easy integration
The NVC TT can be easily integrated into any complete sound system and is specifically designed to work with preamplifiers NSC 222 and NAC 332 from the New Classic range. With the NPX TT power supply, the NVC TT delivers an exceptional vinyl listening experience.

Techniniai duomenys

Technical Specifications
THD+N : MM: <0.005% ref 50mV input / MC (low & high gain): <0.005% ref 1.5mV input
Inputs/Outputs Specifications
Analogue gain :
MM: 42dB
MC (low & high gain): 61dB low gain and 67dB high gain (switchable)
Analogue inputs :
MM: -2dB at 20Hz and -3dB at 14Hz (Partial)
Analogue outputs :
Max output signal: 8 Vrms
Power supply inputs : Type 1
Phono specifications
IEC Cut : (Partial) - 2dB at 20Hz and -3dB at 14Hz
Crosstalk - Phono : MM: >75 dB
Headroom :
MM: 22dB ref 5mV input
MC: 23dB ref 0,5mV input low; 17dB ref 0,5mV high setting
Input Overload : 8.2 V RMS
Loading :
MM: 47kΩ and 100pF
MC (low & high gain):
16 selectable resistive values:
1 000 Ω, 600 Ω, 430 Ω, 330 Ω, 250 Ω, 215 Ω, 185 Ω,165 Ω,150 Ω, 140 Ω, 125 Ω, 115 Ω, 105 Ω, 100 Ω, 90 Ω, 85 Ω
16 selectable capacitive values:
100 pF, 400 pF, 700 pF, 1000 pF, 1300 pF, 1600 pF, 1900 pF, 2200 pF, 2500 pF, 2700 pF, 3100 pF, 3400 pF, 3700 pF, 4000 pF, 4300 pF, 4600 pF
Phono gain :
MM: 42dB
MC (low & high gain): 61dB low gain and 67dB high gain (switchable)
RIAA Accuracy : MM: +/-0.1dB
Power Supply
Power consumption (off mode) : Given by the power supply
Power consumption (Standby mode) : Given by the power supply
Compatible power supplies : NPX TT, NSC 222
Design
Depth : 31.7 cm / 12.5 in
Height : 7 cm / 2.75 in
Width : 21.4 cm / 8.37 in
Weight : 3.4 kg / 7.5 lb
Compatibility
Power Supply Options : NPX TT, NSC 222 and NAC 332
Included Accessories
Cables provided :
Power supply
