Produkto aprašymas
NAD CI S2 - kompaktiškas dviejų zonų tinklo muzikos grotuvas, skirtas profesionalioms garso instaliacijoms. BluOS platforma leidžia patogiai transliuoti aukštos raiškos muziką iki 24 bit / 192 kHz, o ESS Sabre 9039Q2M DAC užtikrina švarų ir detalų garsą. Stabilus Ethernet ryšys, PoE arba 12 V DC maitinimas bei integracija su populiariomis valdymo sistemomis leidžia lengvai pritaikyti CI S2 daugiazonėse garso sistemose.
Pagrindinės savybės
BluOS Hi-Res muzikos transliavimo platforma
2 nepriklausomos garso zonos iš vieno įrenginio
ESS Sabre 9039Q2M DAC aukštos kokybės garsui
Hi-Res atkūrimas iki 24 bit / 192 kHz
Palaiko FLAC, MQA, ALAC, WAV, AIFF ir kitus formatus
Ethernet Gigabit LAN stabiliai laidinei tinklo jungčiai
Maitinimas per PoE arba 12 V DC
Analoginiai ir skaitmeniniai įėjimai
AirPlay 2, Spotify Connect, Tidal Connect
Integracija su Control4, Crestron, RTI, URC, Lutron ir kitomis valdymo sistemomis
Kompaktiškas 1U, 1/3 rack korpusas profesionaliai instaliacijai
Iki 6 stereo zonų vienoje 1U rack erdvėje naudojant kelis modulius
The NAD CI S2 BluOS Streaming Module is designed to bring reliable, high-resolution music streaming into professional custom installation systems with efficiency and control. Built on the BluOS multi-room platform, CI S2 provides access to leading streaming services, internet radio, and local music libraries, all delivered with stable network performance and intuitive control. Providing Hi Res audio for 2 zones, the CI S2 integrates seamlessly into distributed audio systems. Compact, flexible, and purpose-built for integrators, the CI S2 delivers modern streaming functionality with the sound quality and reliability expected from NAD Custom Install.
KEY FEATURES
BluOS high-resolution music streaming platform
Two-zone streamer designed for custom installation
Compact 1U 1/3 rack width chassis
Access to streaming services, internet radio, and local libraries
Analogue and digital audio inputs for source integration
POE or DC Power options.
ESS DACs for high performance audio
Configurable 12v Smart Trigger
Ethernet networking for stable, wired performance
Support and custom drivers for leading control and automation systems
BluOS Streaming for AV Integration
At the core of the CI S2 is BluOS, NAD’s advanced streaming platform developed for reliable, high-performance multi-room audio. BluOS supports high-resolution playback and provides access to a wide range of streaming services, internet radio stations, and networked music libraries. Designed for responsive control and long-term stability, BluOS allows installers to deliver a consistent user experience across single zones or larger distributed audio systems.
Two-Zone Streaming with Flexible System Design
The CI S2 is designed as a two-zone streaming solution, allowing installers to deliver independent audio streams from a single compact component. Each zone can be assigned its own content, volume, and output path, making the CI S2 ideal for distributed audio systems that require greater flexibility without added hardware. With analogue and digital connectivity supporting a wide range of amplifiers and system topologies, the CI S2 enables efficient zone expansion while keeping system design streamlined and easy to manage.
Compact Form Factor for Custom Installation

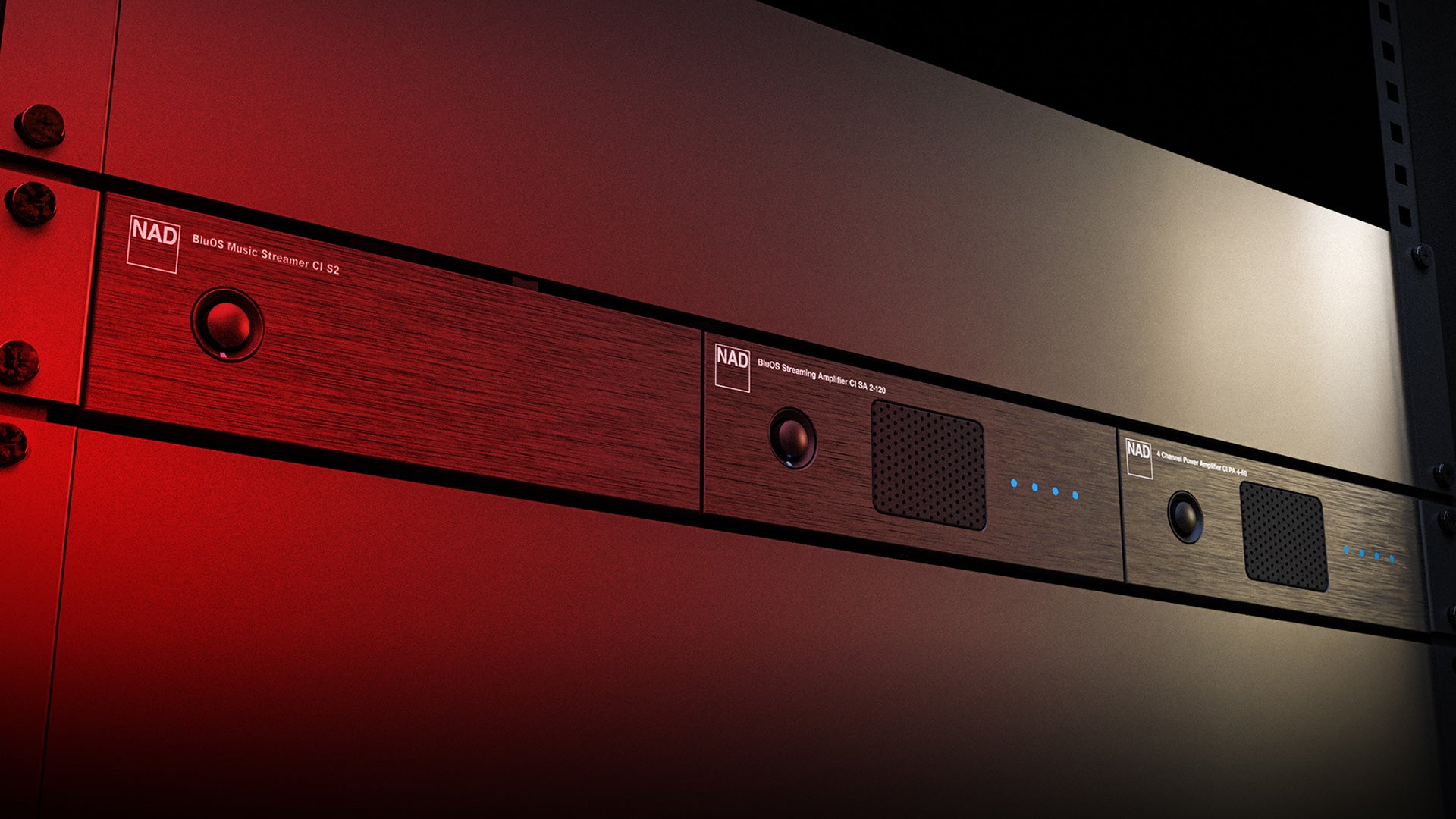

The CI S2 features a compact 1U, 1/3-rack- width enclosure, allowing for 6 stereo zones in a 1u rack space. The CI S2 can be combined with other NAD CI Modular Series devices and mounted in the rack using ChassisLink for simple tool free mounting. This space-efficient design supports clean rack layouts and simplifies installation in projects where space and access are limited.
Techniniai duomenys
AUDIO
Supported Audio File Formats MP3, AAC, WMA, WMA-L, OGG, OPUS
Supported High-Quality Audio File Formats FLAC, MQA, ALAC, WAV, AIFF, MPEG-4 SLS
Supported Multi-Channel Audio Formats Dolby Digital® Downmixing to stereo PCM
Native Sampling Rates up to 192 KHz
Bit Depth 16-24
DAC ESS Sabre 9039Q2M
Audio Controls & EQ BluOS Control App
Signal-to-Noise Ratio -120dBA
Distortion THD+N, 0.0008%
SOFTWARE & INTEGRATIONS
Operating System BluOS
App Controller Operating System iOS, Android, Windows, macOS
Processor ARM® Cortex™ -A53, Quad-Core, 1.8GHz per core
Supported Network File Sharing Server Messsage Block (SMB) up to 200,000 files
Album Art Supported JPG, PNG
Music Services & Internet Radio 23+
3rd-Party Integrations AirPlay 2, Spotify Connect, Tidal Connect
Room Correction Software No
Control System Integrations Creston, Control4, RTI, Nice, URC, Lutron, Gira, Rako, Rithum, Free@Home, Josh.AI
Voice Control Integrations Amazon Alexa Skills

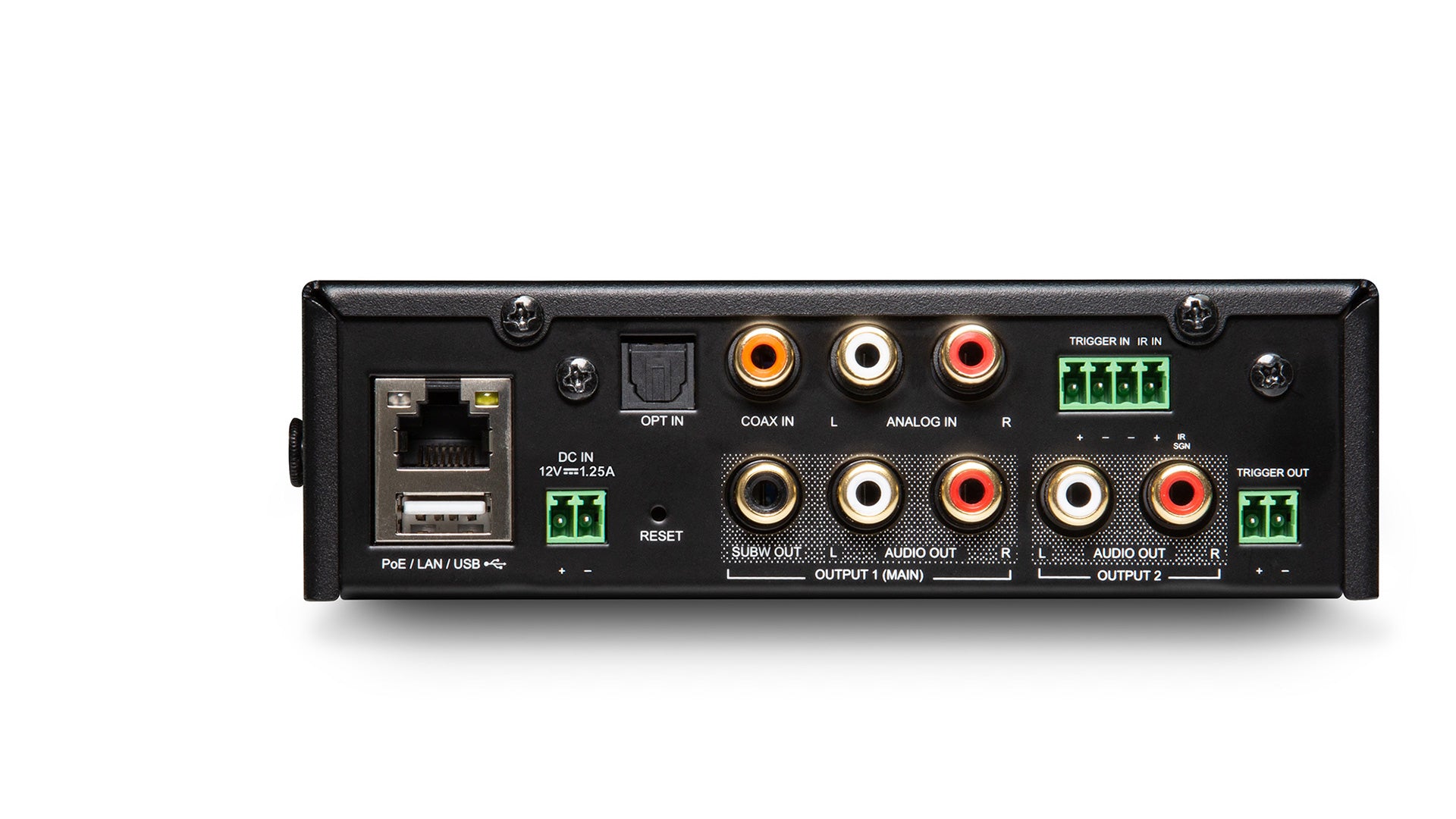

CONNECTIONS
Power Supply 12v, 1.25a DC Universal Power Supply
PoE Yes (PoE can be used instead of supplied DC PSU)
Ethernet/LAN Ethernet RJ45, Gigabit 1000Mbps
Wi-Fi Built In No
Bluetooth No
IR Optical Built In No
IR Input 2-pin PHX connector (IR extender kit required)
Inputs Toslink Optical, Digital Coax, Stereo RCA (Zone 1 Only)
HDMI Input No
USB In Type A (Fat32, NTFS Formatted) - External Storage Only Local Server Mode
Dual RCA Outputs Yes
Main Zone/Sub Zone Capability Yes (independent volume control over Speaker Output 2 when activated)
Subwoofer Output RCA x 1 (Zone 1 Only)
Headphone Output None
12v Trigger Input x1 Configurable Smart Trigger Input
12v Trigger Output Yes (PHX connector)
USER INTERFACE & CONTROL
Status Indicator BluOS Status LED
Source Status Indicator No
Output Status Indicator No
GENERAL
Finish Black
Max Power Consumption 15w
Storage Environment -10°C to 50°C, 20% to 80% relative humidity
Operating Environment 0°C to 40°C
SKU/Version S1
Generation 1
DIMENSIONS
Product Dimensions 146.5 x 44 x 238 mm (5.77 x 1.73 x 9.4 inches)
Product Weight 1.21 kg (2.66 lbs)
Dimensions (Shipping, Single Unit) 366 x 228 x 140 mm (14.4 x 8.97 x 5.51 inches)
Weight (Shipping, Single Unit) 2.2 kg (4.85 lbs)
Dimensions (Shipping, Masterpack) 470 x 386 x 444 mm (18.5 x 15.2 x 17.5 inches)
Weight (Shipping, Masterpack) 23.3 kg
Units per Carton 6
INCLUDED ACCESSORIES
Power Adaptor Universal 12V DC Power Adaptor
Rack Ears / Wall Mount Brackets 2 x Short rack ears (also used as wall mount brackets)
Long Rack Ears / Blanking Plates 2 x Long rack ears/blanking plates
ChassisLink Hardware 2 x Shoulder Bolts + 2 x Rubber Washers (already attached for ChassisLink)
12V Trigger In + IR Connector 1 x 4-PIN PHX Connector for 12V Trigger In + IR
12V Trigger Out and DC Power Connectors 2 x 2-Pin PHX Connectors for 12V Trigger Out and DC Power In
Rubber Feet 4 x optional stick-on rubber feet
*Specifications subject to change without notice.
