Produkto aprašymas
Match MW 8BMW-D Automobilinis Garsiakalbis galia RMS/ Max - 200 / 400 W resonanso juosta 46 Hz EQ filtras | kaina už 2 vnt. | Nemokamas Pristatymas

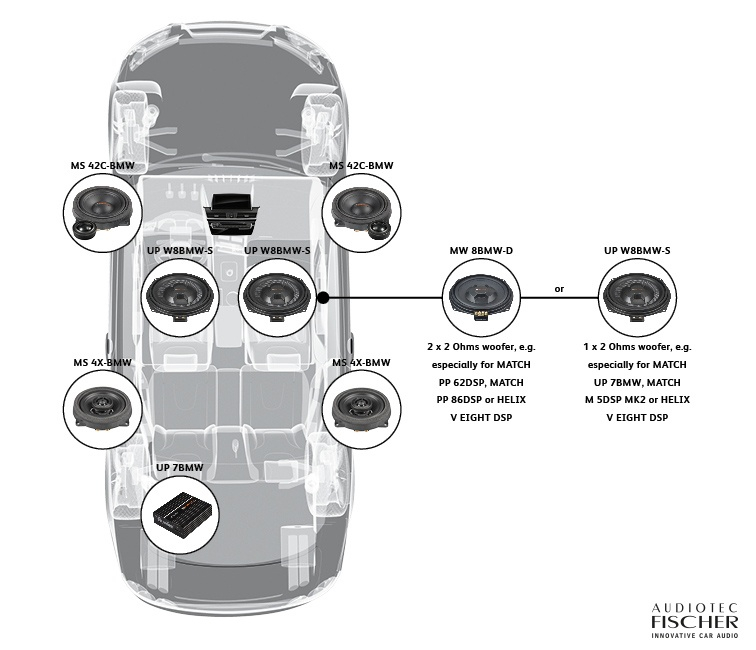

Tinkantys visiems BMW modeliams kuriuose yra 20cm garsiakalbiai po sėdynėmis.
Specifikacijos
| Power RMS / max. | P | 200 / 400 Watts | |
| Impedance | Z | 2 x 2 Ω | |
| DC resistance | Re | 3.4 Ω | |
| Resonance frequency | Fs | 46 Hz | |
| Mechanical Q factor | Qms | 4.45 | |
| Electrical Q factor | Qes | 0.59 | |
| Total Q factor | Qts | 0.52 | |
| Compliance | Cms | 272 µm/N | |
| Equivalent air volume | Vas | 17.3 L | |
| Force factor | B*I | 8.6 Tm | |
| Efficiency 1 W / 1 m | SPL | 90 dB | |
| Cone area | Sd | 214 cm² | |
| Moving mass | Mms | 44.2 g | |
| Cone material | Hand-scooped paper cone | ||
| Mechanical resistance | Rms | 0.74 kg/s | |
| Voice coil diameter | ø | 42.5 mm | |
| Voice coil winding height | 12.5 mm | ||
| Max. linear excursion | Xmax | +/- 4.0 mm | |
| Outer diameter | ø | 239 mm / 9.41" | |
| Installation diameter | ø | 175 mm / 6.89" | |
| Installation depth | 40 mm / 1.57" | ||
| Recommended enclosure volumes | |||
| Sealed box | |||
| Net volume | 3 L | ||
| Lower limiting frequency (-3dB) | 63 Hz | ||
| DSP settings | - Highpass: Butterworth; 12 dB/octave; crossover frequency 40 Hz - Additional EQ filter: center frequency 90 Hz; Q factor 3.0; gain -4 dB - Lowpass: Butterworth; 24 dB/octave; crossover frequency 80 - 100 Hz |
||
| Vented box | For one subwoofer | For two subwoofers | |
| Net volume | 12 L | 24 L | |
| Port diameter | ø | 60 mm / 2.36" | 80 mm / 3.15 |
| Port area | 28 cm² | 50 cm² | |
| Port length | 25 cm / 9.84" | 20 cm / 3.94" | |
| Port tuning frequency | Fb | 46 Hz | 46 Hz |
| Lower limiting frequency (-3dB) | 45 Hz | 45 Hz | |
| DSP settings | - Highpass: Self-Define; crossover frequency 40 Hz; Q factor 1.3 - Additional EQ filter: center frequency 67 Hz; Q factor 3.0; gain -3 dB - Lowpass: Butterworth; 24 dB/octave; crossover frequency 80 - 100 Hz |
||
