Produkto aprašymas

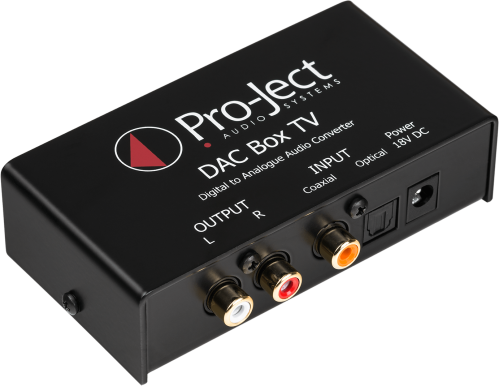

Pro-Ject DAC Box TV Konverteris Skaitemninio-Analoginio signalo audio konverteris, konverterio tipas: Cirrus Logic CS4344, THD -90 dB, dinaminiai dažniai: -105 dB | Nemokamas Pristatymas
Skaitmeninio į Analoginį signalo Audio konverteris
Modern TV‘s, Bluray players, Satellite receivers, game consoles also are multifunctional, Bluray players are able to play CDs and Sat receivers can play radiostations. Unfortunately they often offer no or bad quality analogue interfaces for connecting these to hifi/audiosystems. By adding the all new and compact DAC Box TV for less than €100, you can make your Bluray player, Apple Macs, PCs, TVs or settop boxes a real hifi source and avoid to buy bulky and expensive surround amplifiers.
DAC Box TV works by taking a direct digital audio signal from your device – before its own soundcard or DAC can do this. It digitally processes the audio signal using our custom designed technology, dramatically improving sound quality and reducing distortion. Subtle detail, sparkling clarity and a real sense of scale and drama never before was available for less!
The DAC Box TV is only available with black casing!
SAVYBĖS
- Audio-upgrade for TV, Sat, Computer ...
- 24 bit/192 kHz Cirrus Logic DAC chip
- Supports 24 bit audio data
- Up to 192 kHz sampling rates
- Automatic signal sensing technology
- Low clock jitter sensitivity
- RCA connectors gold plated (in & out)
- Metal casing protects against vibration and interference
- Black casing only
TECHNINIAI DUOMENYS
| D/A-converter | Cirrus Logic CS4344 (Delta-Sigma type) |
| Sampling rates (coax) | 32 / 44.1 / 48 / 88.2 /96 kHz |
| Sampling rates (optical) | 32 / 44.1 / 48 / 88.2 / 96 kHz |
| Digital inputs | 1 x coax (S/PDIF), 1 x optical (Toslink®) |
| Dynamic range | 105 dB |
| Analogue out | 1 pair RCA/Cinch |
| Output voltage | 0,7 Veff |
| Output impedance | < 100 ohms |
| THD | -90 dB |
| Power consumption | < 1 watt standby, max. 200 mA DC |
| Power supply | 5 V /1000 mA DC; 220 - 240 V, 50 Hz |
| Dimensions W x H x D | 107 x 30 x 64 (75) mm (incl. sockets) |
| Weight | 290 g without power supply |
