Produkto aprašymas

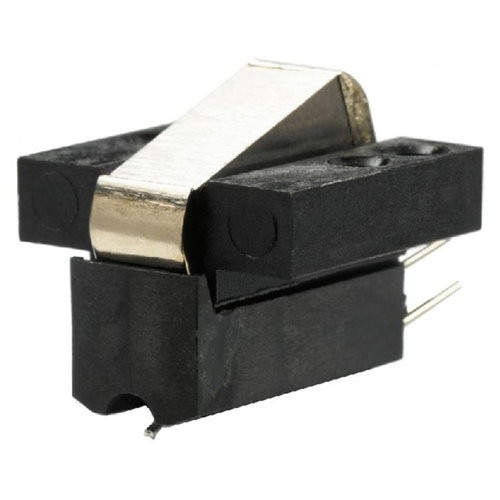

Ortofon SPU Classic N E Patefono Galvutė Atkuriamų dažnių juosta 20-20.000 Hz, išėjimo lygis - 0.2 mV | Nemokamas Pristatymas
SPU Classic NE suteikia tas pačias garso ypatybes, kaip ir SPU Classic GM E serijos Galvutė
The SPU Classic NE is sold without the integrated headshell unit.
The SPU Classic NE is a Moving Coil (MC) cartridge with an elliptical stylus profile and provides more detailed sound reproduction and expansive imaging.
Listeners who wish to mount the SPU Classic NE on a traditional headshell may do so by using SPU N adaptor. Those with vintage SPU-type headshells can use the Classic NE to recreate an authentic and functional SPU cartridge. NB: Vintage SPU-type headshells are no longer available.
Techninės Specifikacijos
- Output voltage at 1000 Hz, 5cm/sec. - 0.2 mV
- Channel balance at 1 kHz < 1 dB
- Channel separation at 1 kHz > 20 dB
- Channel separation at 15 kHz > 10 dB
- Frequency response - 20-20.000 Hz + 3/- 2 dB
- Tracking ability at 315Hz at recommended tracking force *) 65 µm
- Compliance, dynamic, lateral - 8 µm/mN
- Stylus type - Nude elliptical
- Stylus tip radius - r/R 8/18 µm
- Tracking force range - 3.0-5.0 g (30-50 mN)
- Tracking force, recommended - 4.0 g (40 mN)
- Tracking angle - 20°
- *) Typical value
- Internal impedance, DC resistance - 2.0 ohm
- Recommended load impedance > 10 ohm
- Coilwire material - High Purity Copper (OFC)
- Cartridge colour - Black
- Cartridge weight - 13 g
