Ortofon MC Windfeld Ti Patefono Galvutė Atkuriamų dažnių juosta 10-50.000 Hz, išėjimo lygis - 0.2 mV | Nemokamas Pristatymas

Būsena: Prekyboje

5 499,00 €

Nemokamas pristatymas per 0-3 darbo dienas.

Klauskite apie prekę / Siūlykite savo kainą / Derėkites

ŽEMIAUSIOS KAINOS GARANTIJA!

Mes pasiūlysim geresnę kainą ir duosime Jums papildomą nuolaidą iki 100 Eur! Tiesiog palikite užklausą arba paskambinkite mums.

Produkto aprašymas

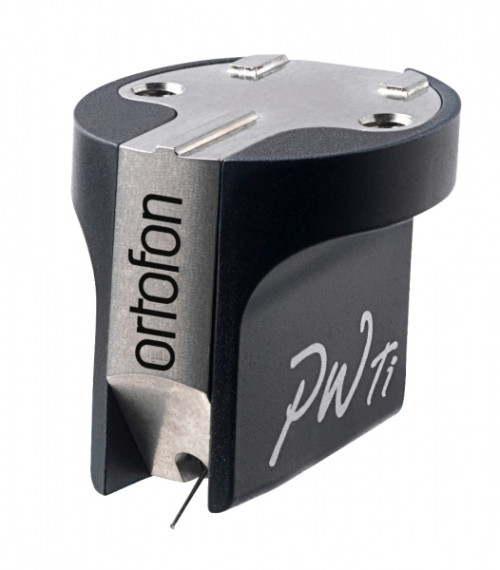

Ortofon MC Windfeld Ti Patefono Galvutė Atkuriamų dažnių juosta 10-50.000 Hz, išėjimo lygis - 0.2 mV | Nemokamas Pristatymas

MC Windfeld Ti High-End klasės Kartridžas

At the heart of the MC Windfeld Ti lies a revolutionary customized Selective Laser Melting manufacturing technology pioneered by Ortofon for manufacturing of the legendary MC A90 in 2008. The use of Titanium in the MC Windfeld Ti has provided a further improvement to the overall rigidity of the structure and the cartridge weight.

Our extensive knowledge of vibration properties, characteristics in different shapes and materials, competences in magnetism, mechanical design and new technologies has been applied for optimization of the MC Windfeld model. The MC Windfeld Ti has gone to the next level by reducing unwanted vibrations and increasing the dynamic capability of the cartridge.

Those who choose to adopt the MC Windfeld Ti will experience the lifelike, dynamic and open sound, with exceedingly clear midrange. The MC Windfeld Ti remains extremely musical while paying close attention to micro dynamic details, with its delicate, but also analytical nature.


The Absolute Sound
Product of the year award

The Absolute Sound
January 2019

"...Sonically, the Ti allows a listener to play nearly every album in his  catalog without being bothered by any sins of commission. This ability to play whatever, whenever, is one of the MC Windfeld Ti's biggest assets. If you value high neutrality and high resolution, low coloration and low distortion, and tracking ability that rivals the best moving magnets, then this outstanding new moving coil is for you..."

The mechanical integration of the MC Windfeld Ti

Historically, Ortofon has always followed its own path with regard to the mechanical design of the cartridge housing, because mechanical rigidity and total freedom from resonance in the audible range are a precondition for optimal sound quality.

In the MC Windfeld Ti the cartridge’s contact with the tonerarm takes place through three hard, well-defined contact points placed on the fastening section of the cartridge. This means that the mechanical integration of the cartridge and the tonearm arm are always absolutely perfect.

Techninės Specifikacijos

  • Output voltage at 1000 Hz, 5cm/sec. - 0.2 mV
  • Channel balance at 1 kHz  -  0.5 dB
  • Channel separation at 1 kHz  -  25 dB
  • Channel separation at 15 kHz  -  20 dB
  • Frequency range at - 3dB  -  10 Hz - 50 kHz
  • Frequency response  -  20 Hz - 20 kHz +2 dB/- 1 dB
  • Tracking ability at 315Hz at recommended tracking force  -  90 µm
  • Compliance, dynamic, lateral  -  13 µm/mN
  • Stylus type  -  Special polished Nude Ortofon Replicant 100 on Boron Cantilever
  • Stylus tip radius  -  r/R 5/100 µm
  • Tracking force range  -  2.0-2.5 g (20-25 mN)
  • Tracking force, recommended  -  2.3 g (23 mN)
  • Tracking angle  -  23°
  • Internal impedance, DC resistance  -  7 Ohm
  • Recommended load impedance  -   > 10 Ohm
  • Coil wire material  -  Aucurum
  • Cartridge body material  -  SLM Titanium and Stainless Steel
  • Cartridge colour  -  Titanium/Black
  • Cartridge weight  -  11 g
