Ortofon MC Quintet Bronze Patefono Galvutė Atkuriamų dažnių juosta 20-25.000 Hz, išėjimo lygis - 0.3 mV | Nemokamas Pristatymas

Būsena: Prekyboje

749,00 €

Nemokamas pristatymas per 0-3 darbo dienas.

Klauskite apie prekę / Siūlykite savo kainą / Derėkites

ŽEMIAUSIOS KAINOS GARANTIJA!

Mes pasiūlysim geresnę kainą ir duosime Jums papildomą nuolaidą iki 100 Eur! Tiesiog palikite užklausą arba paskambinkite mums.

Produkto aprašymas

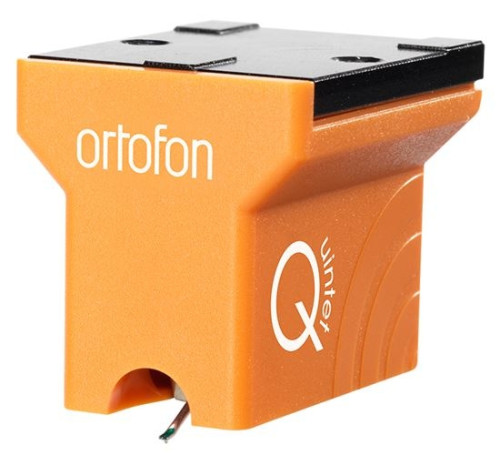

Ortofon MC Quintet Bronze Patefono Galvutė Atkuriamų dažnių juosta 20-25.000 Hz, išėjimo lygis - 0.3 mV | Nemokamas Pristatymas

Quintet Bronze aukščiausio lygio Quintets.

The slim profile of its Nude Fine Line diamond stylus will track even the highest frequency information, making it a must for discerning listeners.

Additionally its larger footprint ensures reduced distortion and record wear.

The sound will be very evenhanded with respect to all aspects. Classical music will be reproduced with power and open space around each of the instruments.

The ST-7 transformer is a perfect match for the MC Quintet Bronze cartridge.

LH-4000 headshell is specially recommended for MC Quintet cartridges series.

Techninės Specifikacijos

  • Output voltage at 1000 Hz, 5cm/sec. - 0.3 mV
  • Channel balance at 1 kHz - < 1.2 dB
  • Channel separation at 1 kHz - > 23 dB
  • Channel separation at 15 kHz - > 15 dB
  • Frequency range at - 3dB - 20-25.000 Hz
  • Frequency response 20-20.000 Hz - +/-1.5 dB
  • Tracking ability at 315Hz at recommended tracking force *) - 80 µm
  • Compliance, dynamic, lateral - 15 µm/mN
  • Stylus type - Nude Fine Line
  • Stylus tip radius - r/R 8/40 µm
  • Tracking force range - 2.1-2.5 g (21-25 mN)
  • Tracking force, recommended - 2.3 g (23 mN)
  • Tracking angle - 20°
  • Internal impedance, DC resistance - 5 Ohm
  • Recommended load impedance - > 20 Ohm
  • Cartridge body material - ABS/Aluminium
  • Coil wire material - Pure 4-nines copper
  • Cartridge colour - Bronze
  • Cartridge weight - 9 gram

Compatibility with Rega brand TT/TA:
REGA brand cartridges’ height from stylus tip to the top cartridge mounting surface is lower than standard. Therefore you would need spacers to ensure the correct set-up of the Ortofon cartridge. Please read about cartridge set-up and alignment on tonearm on our FAQ.
Adjusting the height of your Rega tonearm is easy with Acoustic Signature's Spacer Set. It allows you to adjust the height from 0.5 mm to 3.5 mm in precise steps of 0.5 mm - without removing the tone arm. Simply loosen the screws, insert the AS-spacer, then lock the screws back down, and you're tonearm is ready to play.
3.2 - 4 mm spacers should be enough for Quintet cartridge.
