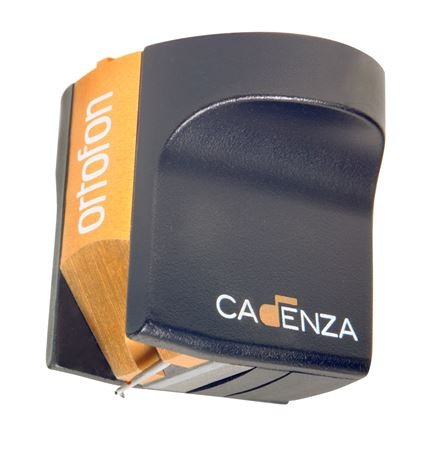

Ortofon MC Cadenza Bronze Patefono Galvutė Atkuriamų dažnių juosta 20-55.000 Hz, išėjimo lygis - 0.4 mV | Nemokamas Pristatymas

Būsena: Prekyboje

2 799,00 €

Nemokamas pristatymas per 0-3 darbo dienas.

Klauskite apie prekę / Siūlykite savo kainą / Derėkites

ŽEMIAUSIOS KAINOS GARANTIJA!

Mes pasiūlysim geresnę kainą ir duosime Jums papildomą nuolaidą iki 100 Eur! Tiesiog palikite užklausą arba paskambinkite mums.

Produkto aprašymas

Ortofon MC Cadenza Bronze Patefono Galvutė Atkuriamų dažnių juosta 20-55.000 Hz, išėjimo lygis - 0.4 mV | Nemokamas Pristatymas

Cadenza Bronze tikras Hi-Res Kartridžas

The Cadenza Bronze model is using a Replicant 100 stylus and a conical aluminium cantilever.
The coil wire is the famous Ortofon Aucurum wire, which is a gold plated 6NX copper wire.
Field Stabilizing Element/FSE, is used for optimal linearity especially during complex crescendo passages.

Cadenza Bronze stereo imaging capabilities illuminate the farthest corners of the soundstage in all three dimensions.

MC A95 SRA.jpg

STYLUS RAKE ANGLE (SRA)

With a complex stylus shape like the Replicant 100, there must be special attention paid to positioning the diamond in the groove.

The Stylus Rake Angle (SRA - see figure) is very important to the performance of the Replicant 100 stylus, and the long contact surface (the sharp edge) of the diamond should be almost perpendicular to the record surface when viewed from the side.  The angle between the record surface and the cantilever is close to 23 degrees when SRA is 90 degrees.

A perfect starting point is to set the tonearm parallel to the record surface and to use the recommended tracking force. The contact surface will be close to perpendicular to the record surface with this setting. The SRA can now gradually and carefully be changed be adjusting VTF and, if necessary, the tonearm height. The target should be an SRA around 92 degrees, determined by the listening experience. In other words, the point of the stylus should point slightly towards the tonearm base.


Techninės Specifikacijos

  • Output voltage at 1000 Hz, 5cm/sec. - 0,4 mV
  • Channel balance at 1 kHz - < 1 dB
  • Channel separation at 1 kHz - > 24 dB
  • Channel separation at 15 kHz - > 20 dB
  • Frequency range at - 3dB - 20 - 55 kHz
  • Frequency response 20 Hz - 20 kHz - +/-1,5
  • Tracking ability at 315Hz at recommended tracking force *) - 80 µm
  • Compliance, dynamic, lateral - 12 µm/mN
  • Stylus type - Nude Ortofon Replicant on conical alu cantilever
  • Stylus tip radius - r/R 5/100 µm
  • Tracking force range - 2,2-2,7 g (22-27 mN)
  • Tracking force, recommended - 2,5 g (25 mN)
  • *) Typical value
  • Tracking angle - 23°
  • Internal impedance, DC resistance - 5 Ohm
  • Recommended load impedance - 50-200 Ohm
  • Cartridge body material - Stainless steel / Aluminium
  • Cartridge colour - Bronze/Black
  • Cartridge weight - 10,7 gram
