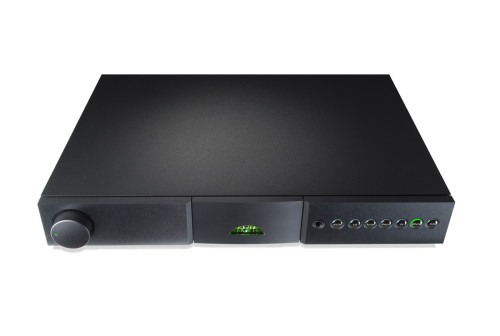

NAIM NAIT XS 3 Integruotas Stiprintuvas jautrumas 130mV, varža 470pF, galia 70W per channel prie 8 omų | Nemokamas Pristatymas

Būsena: Prekyboje

2 699,00 €

Nemokamas pristatymas per 0-3 darbo dienas.

Klauskite apie prekę / Siūlykite savo kainą / Derėkites

ŽEMIAUSIOS KAINOS GARANTIJA!

Mes pasiūlysim geresnę kainą ir duosime Jums papildomą nuolaidą iki 100 Eur! Tiesiog palikite užklausą arba paskambinkite mums.

NAIM

Produkto aprašymas

NAIM NAIT XS 3 Integruotas Stiprintuvas jautrumas 130mV, varža 470pF, galia 70W per channel prie 8 omų | Nemokamas Pristatymas


NAIT XS 3 į detales orientuotas stiprintuvas!

Savybės

With our typical obsessive attention to detail – all in service of achieving the most authentic musical performance – the NAIT XS 3 benefits from the following features:

  • Class A headphone amplification
  • Alps Blue Velvet volume control
  • Reed relay input selection
  • Ceramic insulators for the power transistors
  • Galvanically isolated microprocessor control section
  • Microphonic-isolating PCB mounts
NAIT XS 3 Integrated Amplifier
NAIT XS 3 Integrated Amplifier
Technology and craft

The upgrades in more detail:

  • Our R&D team has found a way to more than double the speed of the voltage gain stage, which in turn doubles the rate at which the speaker output stage can react.

  • The second gain stage transistors have been optimised, so they no longer need to be shielded by a cascode stage transistor. Removing the cascode means less amplifier stabilisation is required: that doubles the slew rate and delivers another uplift in sound quality.

  • The phono circuit topology comprises 3 stages: the gain stage, passive equalisation and final gain and active equalisation. This enables excellent noise performance, extended RIAA equalisation beyond the audio band and great overload headroom.

  • All RIAA equalisation capacitors are ‘through-hole’ mounted film designs, with low microphonic pickup and excellent transient performance. As phono stages are 1000x more sensitive than other inputs, this greatly benefits the sound quality.

  • Input impedance is 47kΩ in parallel with 470F capacitive loading;  the gain is perfect for 5mV moving magnet cartridges



Specifikacijos

Audio Inputs
MM Phono Input

via RCA, 47k parallel 470pF input impedance, suitable for 5mV cartridges

Line Level Inputs

130mV sensitivity, 47k input impedance, suitable for 2V

Power Amp In

DIN Socket

Audio Outputs
Powered Accessory Sockets

+24V for Naim phono amplifier

Speaker Outputs

70W per channel into 8 ohms (4mm sockets), 100W per channel into 4 ohms

Line Outputs Variable (level)

Pre-amp (DIN), Bi-amp (DIN), Sub (RCA pair) 775mV, <50 ohms

Line Outputs Fixed (level)

AV (DIN), Stream (DIN) 130mV, 600 ohms

Headphone Output

1/4 inch (6.35mm) TRS Socket

Connectivity
Updates

1 x USB mini-B

Remote Input

1 x 3.5mm Jack on rear

Finish
Case

Black powder coated

Front

Brushed and black anodised

Physical
Shipping Weight

12 kg

Shipping Dimensions

200 x 590 x 500 mm

Weight

8.5 kg

Dimensions (HxWxD)

70 x 432 x 314 mm

Power
Power Consumption (max.)

350VA

Mains Supply

115V, 230V; 50 or 60Hz

Power Consumption (quiescent)

16VA

Supplied with
Supplied with

NARCOM-5 Remote Control, Mains Lead, Link Plug and Safety Manual

User Control
Front Panel

Volume control and front panel buttons

Remote Control

Infra-Red (RC5)
