Naim NAP 350, galios stiprintuvas, Class AB, 175 W / 8 Ω, 345 W / 4 Ω, XLR | nemokamas siuntimas

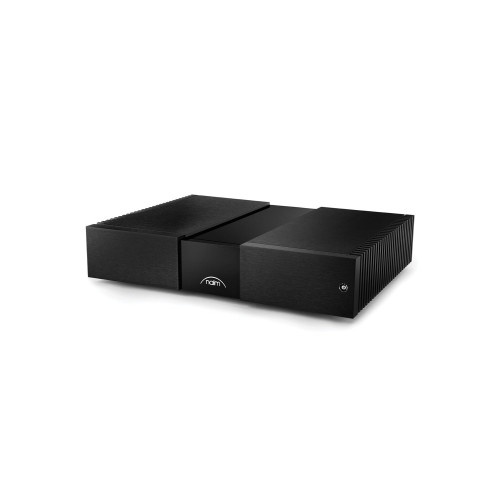

Naim NAP 350 - aukštos klasės monofoninis galios stiprintuvas, sukurtas galingai ir tiksliai valdyti reiklias kolonėles. Klasės AB konstrukcija, 175 W į 8 Ω ir 345 W į 4 Ω galia bei Naim DR maitinimo technologija užtikrina dinamišką, stabilų ir detalų garsą.

Pagrindinės savybės

175 W prie 8 Ω ir 345 W prie 4 Ω, pakankamai galios net reiklioms kolonėlėms.
Monofoninė Class AB konstrukcija, tikslus, dinamiškas ir stabilus garso atkūrimas.
Iki 1,7 kW pikinė galia, užtikrintas darbas net esant sudėtingoms kolonėlių apkrovoms.
Naim DR technologija - švaresnis ir stabilesnis maitinimas, mažesnis triukšmo lygis.
NA009 galios tranzistoriai - technologija iš Naim Statement serijos.
Balanced XLR įvestis, kokybiškam ir patikimam signalo perdavimui.
Aliuminio korpusas, efektyviai išsklaido šilumą ir apsaugo elektroniką.

NAP 350
Power Amplifier

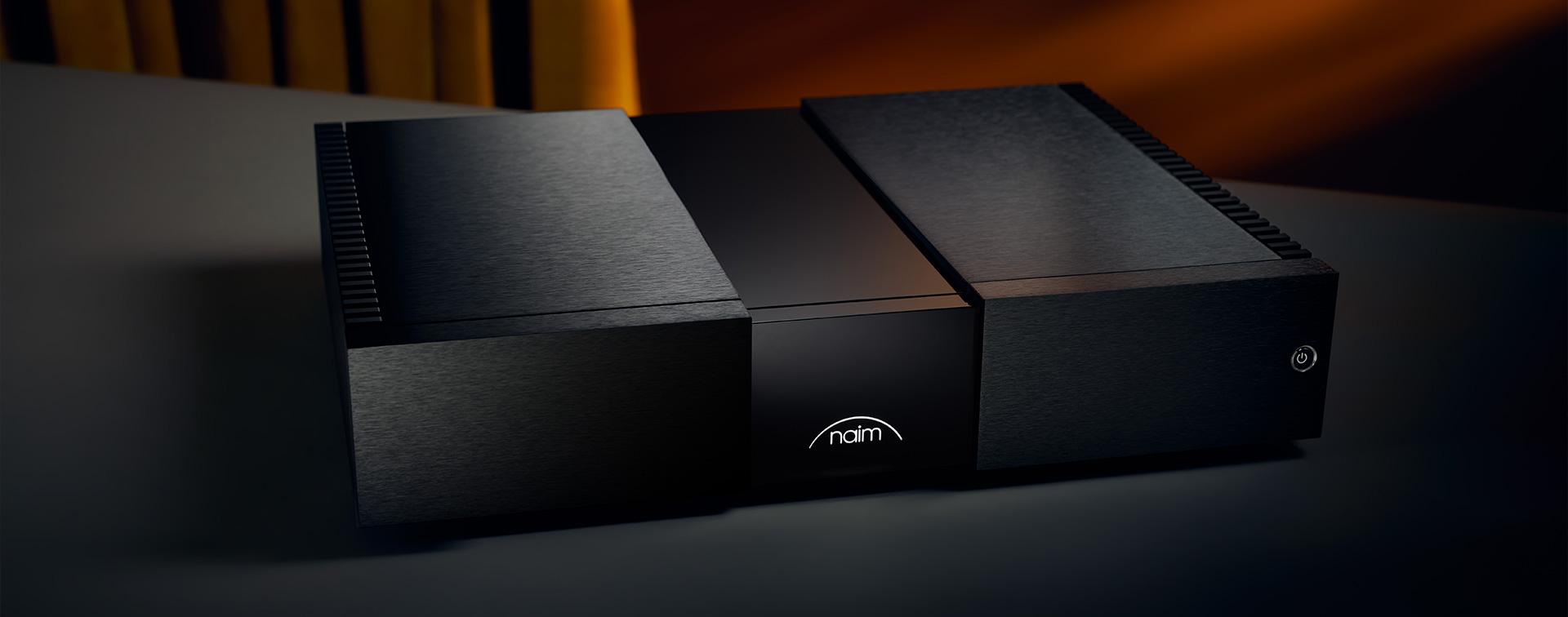

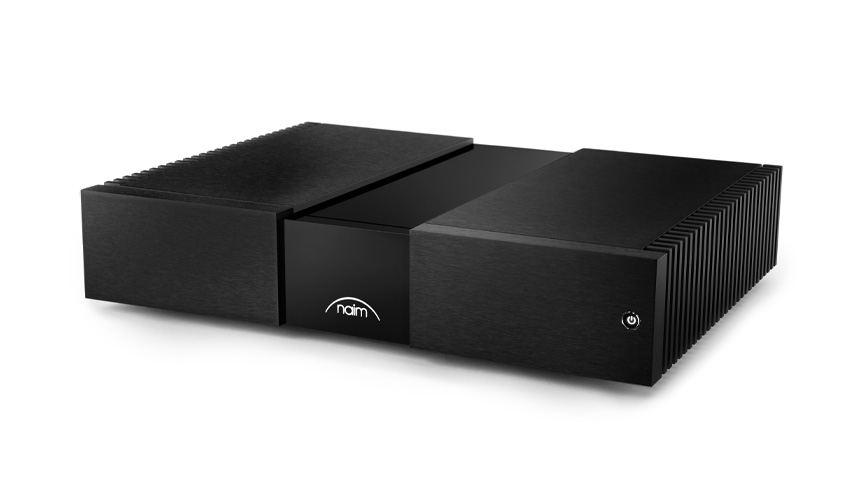

Drive large and demanding loudspeakers with a pair of NAP 350s. Designed to effortlessly capture the true dynamics of music; this highly dynamic amplifier offers a precise musical performance.

Precision and speed
The NAP 350 delivers high power with precision and speed. Our engineers have developed specific electronic circuits to give the New Classic products superior performance. The NAP 350 has a new high-current output stage that uses matched pairs of Statement's NA009 custom power transistors. Combined with our acclaimed DR technology, it guarantees a stable and low-noise power supply.

A timeless design
The NAP 350 combines a sleek design and premium materials such as highly thermally conductive aluminium alloy heatsinks. At Naim, we pride ourselves in the clear-cut design of our products; we avoid any unnecessary embellishment that would detract from the performance and sound quality of our products.

Perfect integration
NAP 350 combines perfectly with the NSS 333 streamer and the NAC 332 preamplifier, creating a complete system. The NAP 350 is a pure class-AB linear amplifier, running from fully regulated DR power supplies, producing 175W into 8 ohms and 345W into 4 ohms. It can deliver a peak power of up to 1.7kW to drive impedance dips of complex speaker crossover networks. The input is via a balanced XLR socket, facilitating industry-wide compatibility.

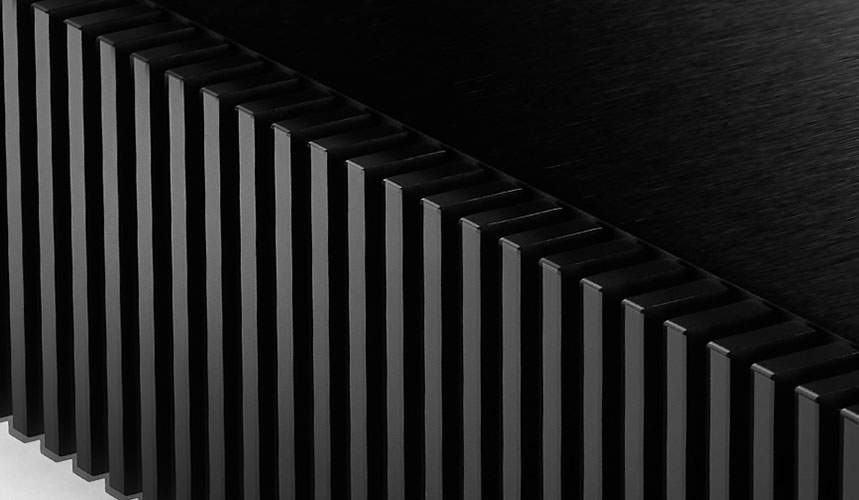

Aluminium casing
Our founder, Julian Vereker, immediately understood the many benefits of aluminium for wrapping Naim electronic components. He knew that delicate audio components are very sensitive to the effects of magnetic fields, unstable temperatures, and unwanted vibrations.

Techniniai duomenys

Technical Specifications
Input signal for clipping :
1.33 VRMS
Crosstalk : NA (mono)
Damping factor in 8Ω : 36.0000
Product type : Amplifier
THD+N : 0.006%
Inputs/Outputs Specifications
Analogue inputs :
1 x 47kΩ True balanced via XLR
1 x 34kΩ singled ended via legacy adaptor lead
Power Output :
175 Watts 8Ω @0.1% THD+N
Power Supply
Power consumption (off mode) : < 0.3W
Power consumption (Standby mode) : < 0.5W
Consumption in normal use : 24 W
Mains power supply : 115V or 230V, 50/60Hz
Design
Depth : 31.75 cm / 12.5 in
Height : 9.15 cm / 3.62 in
Width : 43.2 cm / 17 in
Weight : 16.5 kg / 36.38 lb
Included Accessories
Cables provided :
Power-Line Lite,
1 x XLR-XLR Balanced Audio Interconnect,
Optical System Automation Cable

Dokumentai

Duomenų lapas (EN)
Vartotojo vadovas (EN)
Katalogas (EN)
