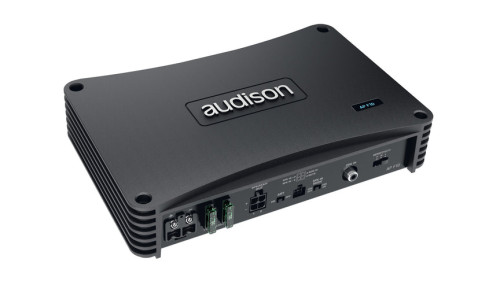

Audison AP F1D, Automobilinis Mono garso stiprintuvas galia: 1000W, pralaidumas: @ -3 dB 10 Hz ÷ 500 Hz | Nemokamas Pristatymas

AP F1D stiprintuvas buvo sukurtas reikliausiems žemųjų dažnių garsiakalbiams ir yra idealus AP F8.9 bitų išplėtimas.

The AP F1D amplifier was designed to drive the most demanding subwoofer and is the ideal extension of the AP F8.9 bit. At 1 Ohms it is stable and can supply up to 1000 W of power with extremely compact dimension.

SPECIFIKACIJOS

• Power supply voltage / fuse 11 ÷ 15 VDC / 2 x 30A
• Operating power supply voltage 6.5 ÷ 17
• VDC Idling current 1.3 A
• Idling current when off 0.05 mA
• Consumption @ 14.4 VDC, 2Ω,
• Max Musical Power 50 A Remote IN 6.5 ÷ 15 VDC (1 mA)
• ART - Automatic Remote Turn on/off from
• OUTPUT BTL speakers (Selectable) 2 ÷ 7 VDC
• Distortion - THD @ 100 Hz, 4Ω, 70% Rated Power 0.1%
• Damping factor @ 100 Hz, 4Ω, 2 VRMS 140
• Bandwidth @ -3 dB 10 Hz ÷ 500 Hz
• S/N ratio (A weighted @ 1 V Input) 110 dBA
• Input sensitivity Pre-In Selectable: 0.6 - 2.0 - 6.0 VRMS
• Input sensitivity Speaker-In Selectable: 2.0 - 6.5 - 20 VRMS
• Minimum load impedance 1Ω

OUTPUT POWER (RMS) @14.4 VDC, 1% THD:

• 1Ch @ 4Ω 500 W x 1
• 1Ch @ 2Ω 800 W x 1
• 1Ch @ 1Ω 1000 W x 1

• Pre-In Inputs RCA
• Speaker-In Inputs wired Mute (Energy Saving control) wired (active to groung)
• Ambient operating temperature range 0 °C to 55 °C (32 °F to 131 °F)
• SIZE Max size W x H x D (mm/inch) 238 x 49.5 x 155 / 9.37 x 1.95 x 6.1
• Weight (kg/lbs) 1,92 / 4.23
