Produkto aprašymas

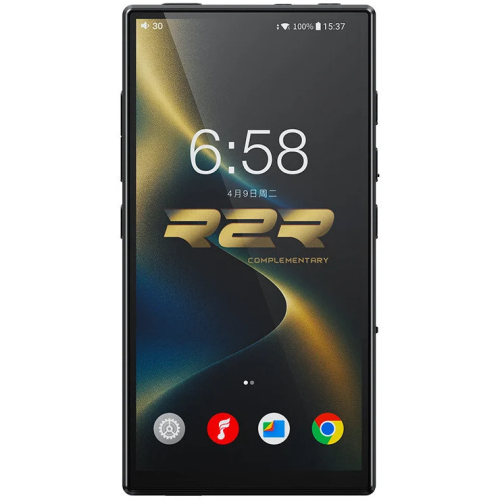

FiiO M33 R2R - aukštos klasės nešiojamasis „Hi-Res“ muzikos grotuvas, išsiskiriantis natūraliu, šiltu ir detaliu skambesiu. Pažangi 24 bitų R2R garso keitiklio technologija suteikia muzikai analoginiam garsui būdingo švelnumo, išlaikydama aiškumą ir dinamiką. „Qualcomm Snapdragon 680“ procesorius, „Android 13“ sistema ir 8 GB operatyviosios atminties užtikrina sklandų veikimą. 128 GB vidinė atmintis, 5,5 colio ekranas ir iki 15,5 valandos veikianti baterija leidžia patogiai mėgautis muzika bet kur. Galingas ausinių stiprintuvas, išvystantis iki 1100 mW + 1100 mW, užtikrina kokybišką garsą net naudojant reiklesnes ausines. „Wi-Fi“, „Bluetooth“ ir USB DAC funkcijos suteikia plačias klausymosi galimybes, o vos 258 g sveriantis korpusas puikiai tinka kelionėms.
Pagrindinės savybės
Garso keitiklis: 24 bitų R2R DAC.
Procesorius: „Qualcomm Snapdragon 680“.
Operacinė sistema: „Android 13“.
Atmintis: 8 GB RAM / 128 GB vidinė, „microSD“ iki 2 TB.
Ekranas: 5,5 colio, 1080 × 2160 taškų.
Ausinių stiprintuvo galia: iki 1100 mW + 1100 mW (32 Ω).
Baterija: 4400 mAh, iki 15,5 val.
Ausinių jungtys: 3,5 mm ir 4,4 mm.
Belaidis ryšys: „Wi-Fi“, „Bluetooth 5.0“, LDAC, aptX HD.
USB DAC: iki 768 kHz / 32 bitų, DSD512.
Garso reguliavimas: 10 juostų parametrinis ekvalaizeris (PEQ).
Papildomos funkcijos: greitasis įkrovimas, nepriklausomo maitinimo režimas.
Svoris vos 258 g.
From desktop to portable, the evolution of R2R
We've taken our proprietary R2R resistor array originally designed for desktop equipment, and brought it over to a portable player for the first time.
Shaped by the ears of expert acoustic engineers and perfected through feedback from the global audiophile community, it delivers the ultimate listening experience:
The unmistakable, lush analog warmth traditionally associated with R2R combined with balanced, high-fidelity performance.
Extensive storage, enduringly smooth performance
The Qualcomm Snapdragon 680 and an expansive 8GB RAM + 128GB ROM storage featured in the M33 R2R is unmatched in its class. Experience effortless streaming and seamless multitasking. It offers extra performance and storage to easily handle any future updates as well as to ensure a stable and durable experience for years to come.
Large 5.5-Inch HD Display, only 258g in hand
Like with the minimalist design featured on the FIIO M21, the sleek, refined lines of the M33 R2R create a sophisticated aesthetic. Clever engineering allows us to strike the perfect balance between size and ergonomics. It's not just about the impressive numbers on the M33 R2R's spec sheet, it's about that seamless, natural feel in your hand.
Carefully engineered audio circuit, powered by TI
The pre-amp stage utilizes TI fully differential op-amps for I/V conversion and signal conditioning, delivering a natural and expansive soundstage. The output stage features quad INA1620 amp chips in a parallel configuration. Thanks to these chips, the result is output power up to 1100mW+1100mW to effortlessly drive any headphone. Finally, the precision electronic volume control ensures that you experience explosive dynamics without losing a hint of detail.
15.5 hours ultra-long battery life, say goodbye to power anxiety
Featuring a premium 4400mAh high-capacity battery, both single-ended and balanced playback times are significantly improved over the M23. Low-temperature fast charging means the M33 R2R powers up quickly without overheating. Between the long-lasting battery and rapid charging, your music never has to stop.
Compatible with RETRO BOX, bring your own soundtrack wherever
It is the perfect match for the RETRO BOX cassette-style Bluetooth speaker, opening up another way to enjoy music. The versatile UI of the RETRO BOX allows it to serve as both a decorative desktop centerpiece and your portable soundtrack source.
*RETRO BOX is not included and must be purchased separately.
Techniniai duomenys
Name/Model M33 R2R
Hardware solution SoC: Qualcomm Snapdragon 680, DAC: FIIO proprietary R2R DAC, USB DAC: XU316
Working modes Android / Pure Music / AirPlay / USB DAC / Bluetooth reception
Colors Retro gold / dark blue / black
Weight About 258 g
Dimensions About 138.2 × 71.5 × 17 mm
Volume control Button control
Display 5.5-Inch (1080 × 2160) fully laminated screen
Internal storage / Usable storage (ROM) 128 GB / About 112 GB
Memory (RAM) 8 GB
Recommended headphone impedance PO: 8–350 Ω / BAL: 8–350 Ω
Memory card Supports up to 2 TB
Channel balance L20–R20 (0.5 dB per level)
Gain selection Over-ear headphone mode (Connect a fast charger) / High / Medium / Low
Buttons and Ports
Parameter Specification
Buttons Power button × 1, Volume button × 2, Multifunction button × 1, Play/Pause button × 1, Previous track × 1, Next track × 1
USB Type-C USB 3.0 × 1 (Charging/Data transfer) + Type-C POWER IN × 1 (Charging/Independent power supply interface)
Slide switch D.MODE button × 1
Headphone output Standard 3.5 mm port
Line output Standard 3.5 mm port (shared PO)
Coaxial output Standard 3.5 mm port (shared PO)
Balanced headphone output Standard 4.4 mm port
Balanced line output Standard 4.4 mm port (shared BAL)
Special Functions
Parameter Specification
WiFi 2.4 GHz / 5 GHz, DLNA / AirPlay / WiFi music transfer
Bluetooth transmission (5.0) SBC / aptX / aptX HD / LDAC / LHDC
Bluetooth reception (5.0) SBC / LDAC
Remote control Supports WiFi control
MQA Supports global decoding
ALL TO DSD Yes
PEQ Supports 10-band PEQ and AUTO EQ
Sound profiles Natural sound / Warmer sound
Local DAC Supports up to 384 kHz / 32 bit; DSD256 (Native)
USB DAC Supports up to 768 kHz / 32 bit; DSD512 (Native)
USB Audio 768 kHz / 32 bit; DSD512 (Supports DoP/D2P/Native)
Coaxial output Supports up to 384 kHz / 24 bit; DSD128 (DOP/D2P)
Double click to wakeup Yes
Screen rotation Yes
Operation Supports gesture control, two-button and three-button navigation
Power-off timers Supports idle poweroff/sleep
Firmware update Supports local storage upgrade + microSD card local upgrade + OTA push upgrade
Power Supply Parameters
Parameter Specification
Power supply PD2.0 / PD3.0 PPS fast charging
Charging time About 1.5 h (PD3.0 PPS fast charging)
Battery Life and Test Conditions
Parameter 3.5 mm Headphone Output 4.4 mm Balanced Output
Battery life 15.5 h 13.5 h
Volume level 43 31
Gain High gain High gain
Display status OFF OFF
Playback track and format MP3 44 kHz / 16 bit MP3 44 kHz / 16 bit
EQ OFF OFF
Load 32 Ω 32 Ω
Personalized sound Natural sound: NOS Natural sound: NOS
Audio Parameters
3.5 mm Headphone Output – Over-ear Headphone Mode
Local playback / USB DAC, Natural soundParameter Specification
Output power (16 Ω) ≥540 mW + 540 mW, 2.9 Vrms
Output power (32 Ω) ≥470 mW + 470 mW, 3.9 Vrms
Output power (300 Ω) ≥60 mW + 60 mW, 4.2 Vrms
Output impedance Less than 0.8 Ω (32 Ω)
Crosstalk ≥74 dB (1 kHz @ 32 Ω)
Noise floor Less than 5.5 μV (A-weighted)
THD+N PCM: 0.0183% / DSD: 0.0033%
SNR ≥117 dB (A-weighted)
Dynamic range ≥114 dB
Frequency response 20 Hz–20 kHz: attenuation less than 1.3 dB
Extended frequency response 20 Hz–40 kHz: attenuation less than 3 dB
Peak output voltage Greater than 12 Vp-p
3.5 mm Headphone Output – High Gain
Parameter Specification
Output power (16 Ω) ≥465 mW + 465 mW, 2.7 Vrms
Output power (32 Ω) ≥300 mW + 300 mW, 3.1 Vrms
Output power (300 Ω) ≥50 mW + 50 mW, 3.9 Vrms
Output impedance Less than 0.8 Ω (32 Ω)
Crosstalk ≥74 dB (1 kHz @ 32 Ω)
Noise floor Less than 4.9 μV (A-weighted)
THD+N PCM: 0.0186% / DSD: 0.0033%
SNR ≥116 dB (A-weighted)
Dynamic range ≥113 dB
Frequency response 20 Hz–20 kHz: attenuation less than 1.3 dB
Extended frequency response 20 Hz–40 kHz: attenuation less than 3 dB
Peak output voltage Greater than 10 Vp-p
3.5 mm Single-ended Line Output
Parameter Specification
THD+N PCM: 0.0182% / DSD: 0.0034%
SNR ≥116 dB (A-weighted)
Noise floor Less than 3 μV (A-weighted)
Crosstalk ≥103 dB
Dynamic range ≥104 dB
Frequency response 20 Hz–20 kHz: attenuation less than 1 dB
Extended frequency response 20 Hz–60 kHz: attenuation less than 3 dB
Line output level 2 Vrms (1 kHz @ 10 kΩ)
4.4 mm Balanced Headphone Output – Over-ear Headphone Mode
Parameter Specification
Output power (16 Ω) ≥540 mW + 540 mW, 2.9 Vrms
Output power (32 Ω) ≥1100 mW + 1100 mW, 6 Vrms
Output power (300 Ω) ≥240 mW + 240 mW, 8.5 Vrms
Output impedance Less than 1.5 Ω (32 Ω)
Crosstalk ≥104 dB (1 kHz @ 32 Ω)
Noise floor Less than 10.3 μV (A-weighted)
THD+N PCM: 0.0171% / DSD: 0.0033%
SNR ≥116 dB (A-weighted)
Dynamic range ≥115 dB
Frequency response 20 Hz–20 kHz: attenuation less than 1.3 dB
Extended frequency response 20 Hz–40 kHz: attenuation less than 3 dB
Peak output voltage Greater than 24 Vp-p
4.4 mm Balanced Headphone Output – High Gain
Parameter Specification
Output power (16 Ω) ≥540 mW + 540 mW, 2.9 Vrms
Output power (32 Ω) ≥900 mW + 900 mW, 5.4 Vrms
Output power (300 Ω) ≥165 mW + 165 mW, 7 Vrms
Output impedance Less than 1.5 Ω (32 Ω)
Crosstalk ≥104 dB (1 kHz @ 32 Ω)
Noise floor Less than 9.1 μV (A-weighted)
THD+N PCM: 0.0180% / DSD: 0.0033%
SNR ≥116 dB (A-weighted)
Dynamic range ≥114 dB
Frequency response 20 Hz–20 kHz: attenuation less than 1.3 dB
Extended frequency response 20 Hz–40 kHz: attenuation less than 3 dB
Peak output voltage Greater than 20 Vp-p
4.4 mm Balanced Line Output
Parameter Specification
THD+N PCM: 0.0163% / DSD: 0.0034%
SNR ≥118 dB (A-weighted)
Noise floor Less than 4.9 μV (A-weighted)
Crosstalk ≥105 dB
Dynamic range ≥114 dB
Frequency response 20 Hz–20 kHz: attenuation less than 1 dB
Extended frequency response 20 Hz–60 kHz: attenuation less than 3 dB
Line output level 4 Vrms (1 kHz @ 10 kΩ)
Output power measurements are specified at THD+N below 1%. The technical information and values follow the supplied FIIO M33 R2R specification document.
