Produkto aprašymas

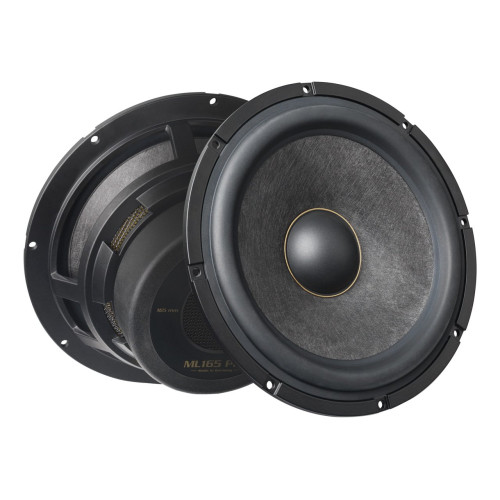

BRAX MATRIX ML165 PRO - tai aukštos klasės 16,5 cm (6.5") vidutinių dažnių / vidutinių žemų dažnių garsiakalbiai, sukurti reikliausiems automobilių garso entuziastams. Vokietijoje pagamintas modelis pasižymi itin lengvu daugiasluoksniu anglies pluošto difuzoriumi, preciziška magnetine sistema ir nepriekaištingu muzikos atkūrimu – nuo tikslaus vidutinių dažnių perteikimo iki galingo, kontroliuojamo žemųjų dažnių atkūrimo.
Pagrindinės savybės
16,5 cm (6.5") vidutinių dažnių garsiakalbiai
120 W RMS / 170 W maksimali galia
4 Ω varža
40 Hz – 4 000 Hz dažnių diapazonas
Anglies pluošto difuzorius
37 mm balso ritė
Lieto aliuminio korpusas
Butilo gumos pakaba
24 karatų paauksuoti kontaktai
Pagaminta Vokietijoje
Power, Control and Sonic Perfection
The BRAX MATRIX ML165 PRO represents the next evolutionary stage of the legendary MATRIX ML6 D – a loudspeaker that has long been regarded in the high-end world as a benchmark for natural music reproduction. With a refined technical design, state-of-the-art materials and uncompromising attention to detail, it has been further developed to elevate midbass performance to an unprecedented level.
The result is a loudspeaker that reproduces music with impressive authority, exceptional precision and emotional depth – created for sound enthusiasts who accept no compromise.
Carbon-fleece multilayer cone – light, rigid and resonance-free
The newly developed carbon fleece multilayer cone of the ML165 PRO was designed and manufactured in close collaboration with renowned specialist Dr. Kurt Müller. Its layered carbon structure combines extreme stiffness with minimal mass, effectively reducing unwanted resonances.
A specially shaped reinforcement collar on the rear – directly at the transition to the surround – significantly increases torsional stiffness and prevents deformation even at high excursion levels. The straight cone geometry at the voice coil former optimizes power transfer and ensures exceptionally precise and controlled sound radiation.
Copper cap for maximum linearity
At the heart of the motor assembly is a copper cap on the pole core. By generating controlled eddy currents, it damps fluctuations in the magnetic field, reducing voice coil inductance, linearizing impedance in the high-frequency range and significantly lowering distortion. The result is a smoother frequency response, higher efficiency and remarkably natural reproduction even in the upper frequency range.
Precision and perfect control
The precisely crafted magnet system of the ML165 PRO provides a stable, symmetrical magnetic flux, ensuring exceptional impulse fidelity and powerful dynamics across the entire frequency range. The aerodynamically shaped aluminum die-cast basket allows ideal voice coil ventilation, minimizes airflow turbulence and guarantees maximum thermal stability with minimal compression effects, even at high output levels.
The specially designed rubber surround enables exceptionally linear cone excursion with minimal distortion. Its highly damped material ensures exact centering and precise control even at maximum excursion, while the high-strength Nomex spider with its dimensionally stable fabric maintains consistent centering and long-term mechanical durability. The result is controlled bass response and a clean, natural midrange presentation.
Massive 24-carat gold-plated terminals ensure maximum conductivity and absolute signal integrity – an essential contribution to uncompromising reference-level sound quality.
Elegant design – functional and aesthetic
With its refined design, the ML165 PRO conveys a visual impression that perfectly complements its outstanding acoustic performance. The fine, silk-matte surface of the cone, the matt black powder-coated aluminum basket and the golden accent ring around the dust cap give it a distinctive, elegant character – perfectly suited for seamless integration into any vehicle interior.
Made in Germany – reference-level sound culture
Like every loudspeaker in the BRAX MATRIX series, the ML165 PRO is crafted in Germany with the highest precision and assigned an individual serial number registered in the BRAX database. Every pair is delivered in an elegant, tailor-made wooden box and represents uncompromising craftsmanship, audiophile passion and reference-level sound culture.
Features
Ultra-lightweight carbon fleece multilayer cone – combines superior stiffness-to-weight ratio with reduced resonance for precise, natural and highly dynamic sound reproduction
Copper cap on the pole core – minimizes voice coil inductance, linearizes impedance at high frequencies, and enhances efficiency for greater transparency and refined upper-frequency response
Hemispherically shaped dust cap – optimizes the upper midrange response for seamless tonal transitions and exceptional detail resolution
Aerodynamically shaped aluminum die-cast basket – allows ideal voice coil ventilation while minimizing airflow noise for consistently high performance even at demanding levels
High-strength Nomex spider – crafted from meta-aramid fabric to ensure exceptional shape stability and long-term reliability even under demanding conditions
Specially shaped rubber surround – crafted from premium butyl enables maximum linear cone excursion with minimal distortion
Ultra-precise machined magnet system – guarantees optimal symmetrical magnetic flux, outstanding impulse accuracy and powerful low-frequency performance
Vented pole core and spider – enhances airflow within the magnetic system and reduces compression effects for consistent performance even at high sound pressure levels
Massive 24-carat gold-plated terminals – guarantee maximum conductivity and signal quality
Made in Germany – developed and manufactured for uncompromising sound quality at reference level
Techniniai duomenys
Power handling RMS / max. P 120 / 170 Watts
Impedance Z 4 Ω
DC resistance Re 3,4 Ω
Frequency response 40 Hz - 4,000 Hz
Resonance frequency Fs 48 Hz
Mechanical Q factor Qms 6.80
Electrical Q factor Qes 0.50
Total Q factor Qts 0.47
Compliance Cms 560 μm/N
Equivalent air volume Vas 14.6 L
Force factor B*I 6.3 Tm
Sensitivity SPL 91 dB @ 2.83V / 1m
88 dB @ 1W / 1m
Cone area Sd 137 cm²
Moving mass Mms 19.1 g
Cone material Carbon fleece multilayer cone
Mechanical resistance Rms 0.87 kg/s
Voice coil diameter ø 37 mm / 1.5"
Voice coil winding height 14 mm / 0.6"
Max. linear excursion Xlin +/- 4.0 mm
Max. mechanical excursion Xmax +/- 8.0 mm
Outer diameter ø 167 mm / 6.5"
Installation diameter ø 143 mm / 5.6"
Installation depth 64 mm / 2.5"
Recommended installation options
a. Infinite baffle
Recommended highpass filter 50 Hz / 24 dB/Octave
“Linkwitz-Riley”
b. Sealed box
Net volume 13 L
Lower limiting frequency (-3dB) 71 Hz
Recommended highpass filter 65 Hz / 24 dB/Octave
“Linkwitz-Riley”
Komplektacija
2 x High-End Woofer BRAX MATRIX ML165 PRO
1 x Drill
1 x Stainless steel screws
1 x Certificate
1 x Data sheet
