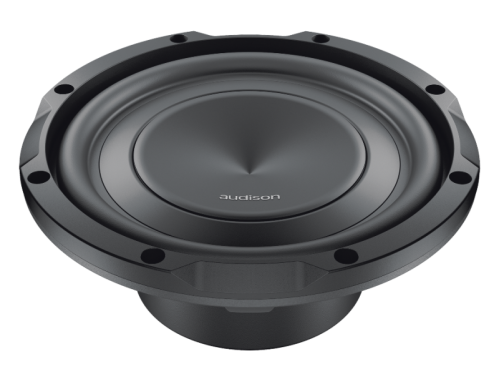

Audison APS 8 D, automobilinis žemų dažnių garsiakalbis galia: 800W (4+4 omai), jautrumas: 84 dB | Nemokamas Pristatymas
Automobilinė žemų dažnių garsiakalbis, kuris perkels Jūsų žemų dažnių patirtį į kitą lygį.
The APS 8 D is designed to deliver maximum performance in a sealed enclosure with ultra-compact volumes from 7.5 lt. to 8.5 lt. It features push connectors for ease of wiring and configurations and has been developed with a primary goal: to deliver high output in tight spaces. Output is a matter of excursion; the more air the cone moves, the more output. However reduced mounting depth traditionally has meant low excursion. Prima subwoofers employ a special cone-dustcap-basket geometry which guarantees large excursion of the mobile group, while keeping the mounting depth to a minimum. The surround and spider have been carefully designed to prevent the “rocking-mode” phenomenon. The cooling circuit has been designed with air vents on the basket underneath the spider, eliminating the need for vents on the bottom-plate. This allows the subwoofer to be mounted close to the back wall of the enclosure, making the most of the reduced mounting depth.
SPECIFIKACIJOS
| Nominal diameter |
200 mm (8 in) |
| Impedance |
4+4 Ohm |
| Power Handling - Peak |
500 W |
| Power Handling - Continuous |
250 W |
| Sensitivity |
83.5 dB |
| Magnet Material |
HIGH DENSITY FLUX FERRITE |
| Magnet size D x d x h |
120 x 50 x 28 mm (in.) |
| Cone Material |
WATER REPELLENT PRESSED PAPER |
| Xmax |
8.8 mm (0.35 in) |
| Xmech |
16.5 mm (0.65 in) |
| Voice Coil Winding Height |
40 mm (1.57 in) |
| Driver Displacement Volume |
0.67 l (0.024 ft) |
Electric-acoustic Specs
| Re |
2.1 Ohm |
| Fs |
30 Hz |
| Le |
1.1 mH |
| Vas |
25.5 l (0.901 ft) |
| Mms |
85 g (2.998 oz) |
| Cms |
0.3 mm/N |
| BL |
8.8 T•m |
| Qts |
0.44 |
| Qes |
0,46 |
| Qms |
5.1 |
Dimensions
 |
| Dimension A |
222 mm (8.74 in) |
| Dimension B |
187 mm (7.36 in) |
| Dimension C |
94.6 mm (3.72 in) |
| Dimension D |
79 mm (3.11 in) |
| Dimension C1 |
104 mm |
