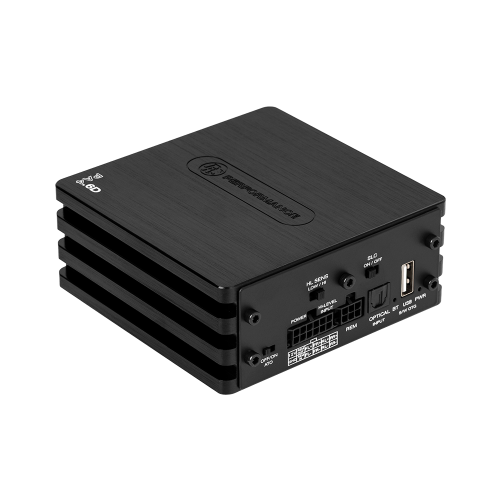

DLS Performance Advantage PA4.6D, 6-ių kanalų automobilinis DSP garso procesorius, 20 – 20 000 Hz | nemokamas siuntimas

DLS Performance Evolution PA4.6D - 6 kanalų DSP garso procesorius, skirtas tiksliam automobilio audio sistemos reguliavimui. Jis leidžia koreguoti garsą pagal automobilio akustiką ir užtikrina švarų bei subalansuotą skambesį. Integruoti Bluetooth 5.1, optinis įėjimas ir OEM sistemų palaikymas.

Pagrindinės savybės

6 kanalų DSP garso procesorius;
Cirrus Logic 24 bit / 192 kHz DSP platforma;
31 juostos EQ kiekvienam kanalui;
Reguliuojami Crossoverio filtrai iki 48 dB/oct;
Laiko korekcija iki 15 ms;
Bluetooth 5.1 ir optinis įėjimas;
6 RCA DSP išėjimai;
Smart Load Circuitry OEM sistemoms;
10 išsaugomų garso presetų;
Valdymas per Windows programinę įrangą.

A compact 6 channel digital signal processor designed to act as the central control unit in systems where amplification is chosen separately. PA4.6D focuses on precise tuning, predictable behaviour and the warm, natural DLS sound in the car.

The DSP is based on a 24 bit / 192 kHz Cirrus Logic platform. Each channel can be adjusted using a 31 band equaliser, flexible crossover filters and time alignment in fine steps. This provides the tools needed to correct speaker response, manage cabin acoustics and establish a stable, well balanced sound stage at the listening position.

PA4.6D is built to integrate cleanly with modern OEM systems. A 4 channel high level input with Smart Load Circuitry ensures stable operation with factory head units that monitor impedance. Additional inputs include RCA, optical digital and Bluetooth 5.1, while six RCA DSP outputs allow easy connection to external amplifiers. Configuration is handled via a Windows based USB interface, with up to ten presets stored in the internal memory.

Techniniai duomenys

Type: 6 channel digital signal processor
DSP: Cirrus Logic 24 bit, 192 kHz
Frequency response: 20 to 20 000 Hz
Signal to noise ratio (A weighted): > 100 dB
EQ: 31 band GEQ or PEQ per channel, -18 to +12 dB in 0.1 dB steps
Crossover types: Bessel, Butterworth, Linkwitz Riley
Crossover slopes: 6 to 48 dB per octave
Time alignment: 0 to 15 ms in 0.021 ms steps (0 to 519 cm)
Inputs: 4 ch high level with Smart Load Circuitry, 2 ch RCA low level, optical digital, Bluetooth 5.1
Outputs: 6 ch RCA DSP output
Memory presets: 10
Auto turn on: Yes
PC connection: USB 2.0, Windows XP to Windows 11
