Audison Thesis HV venti, automobilinis garso stiprintuvas galia: 1600 W, MOSFET-BJT HYBRID konfigūracija, Hi-Res garso palaikymas | Nemokamas Pristatymas

Būsena: Prekyboje

8 799,00 €

Nemokamas pristatymas per 0-3 darbo dienas.

Klauskite apie prekę / Siūlykite savo kainą / Derėkites

ŽEMIAUSIOS KAINOS GARANTIJA!

Mes pasiūlysim geresnę kainą ir duosime Jums papildomą nuolaidą iki 100 Eur! Tiesiog palikite užklausą arba paskambinkite mums.

Audison

Produkto aprašymas

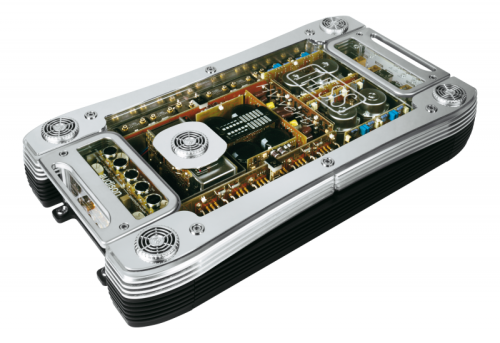

Audison Thesis HV venti, automobilinis garso stiprintuvas galia: 1600 W, MOSFET-BJT HYBRID konfigūracija, Hi-Res garso palaikymas | Nemokamas Pristatymas

Automobilinis garso stiprintuvas. Šis garso stiprintuvas įkūnyja visas geriausias gamintojo garso savybes.

HV VENTI ORIGINATES FROM THE MERGING OF TWO LEGENDS: HR 100 MUSICALITY AND HV SEDICI POWER BLEND TOGETHER TO GIVE LIFE TO THE AMPLIFIER PAR EXCELLENCE

Each product, even of high quality, is subject to constraints defined in the design phase, based on the needs of the market. The difference between Thesis HV venti and any other amplifier is very simple, we have not applied any constraints.

Thesis HV venti was born with a unique target, to be the best amplifier in the world!

It represents the maximum expression of the Audison R&D staff, who have pushed themselves beyond the absolute without any brakes, looking for the perfect sound parameteres.

HV venti is a stereo Dual Mono amplifier realized according to absolute Hi End parameters. Four power supplies, low feedback, high bias current: these are only some of the adopted solutions to obtain reference performances.

Through the developing of HV venti project many technological innovations were introduced in audio field. Dual Power lets you set up final stage in two output power configurations, Hi Current or Hi Power. This function permits total conformation to loudspeakers impedance and power handling specifications.

The preamplifier PCB is able to dissipate the heat generated by the active devices while keeping their working temperature at the same level and positively affecting sound. In order to let you admire the masterpiece Audison designers created the electronics is covered by a special tempered scratchproof glass and it is lighted by several white, red and blue leds positioned in strategic spots.

Hi-Res audio

According to the definition of HiRes audio provided by JAS (Japan Audio Society - jas-audio.or.jp), HV venti far exceed the above 40 kHz bandwith analog requirement, providing an astonishing 5 ÷ 75k Hz (@ -3 dB, 2 VRMS, 4 Ω).

MOSFET-BJT HYBRID CONFIGURATION

Unique output power stage topology, FUNCTION discrete IGBT, realized with a complementary pair of Hitachi DMOS driving two pair of complementary Sanken power BJT, each rated for 30A peak current and 200W dissipation.

DUAL POWER FUNCTION

A revolutionary function allowing the user to select the amplifiers output power configuration and the operating class.

DUAL MONO CONSTRUCTION

Four Synchro-PWM power supplies allow for a very fast transient current response and to create a Dual Mono configuration.

JFET DIFFERENTIAL STAGES

Fully balanced JFET differential preamplifier inputs with output buffer for control unit.

SPECIFIKACIJOS

Load Imp. Hi-Current Hi-Power
4 Ohm 200 W x 2
800 W x 1
400 W x 2
1600 W x 1
2 Ohm 400 W x 2
1300 W x 1
800 W x 2
1 Ohm 350 W x 2
