Produkto aprašymas

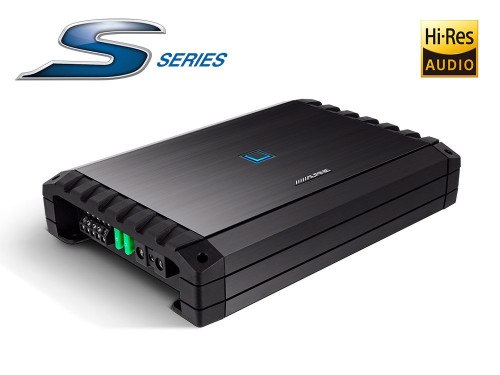

Alpine S2-A55V - universalus 5 kanalų Class D stiprintuvas, skirtas visai automobilio garso sistemai. Jis tiekia 4 x 60 W RMS garsiakalbiams ir 300 W RMS subvuferiui, o Hi-Res Audio sertifikatas užtikrina detalų ir kokybišką garsą iki 40 kHz.
Pagrindinės savybės
5 kanalų Class D stiprintuvas;
4 x 60 W + 1 x 300 W RMS prie 2 Ω;
Hi-Res Audio sertifikatas;
Integruotas subvuferio kanalas;
Reguliuojami HPF ir LPF filtrai;
Bass EQ funkcija;
Automatinis įjungimas per aukšto lygio įėjimą;
Galimybė prijungti nuotolinį žemųjų dažnių valdiklį;
Dažnių diapazonas: 10 Hz – 40 kHz.
The next generation of Alpine S-Series amplifiers are designed to take your car audio system to the next level, but at a reasonable price. These amplifiers offer exceptional performance and power at an affordable price, with a new sleek design and improved features from the original S-Series amplifiers.
The S-Series S2-A55V 5-channel amplifier delivers 60W RMS @ 2 Ω of original high-fidelity signal to each of your car's front and rear speakers, and 3,00W RMS power to the subwoofer simultaneously. The amplifier's combination of Hi-Res Audio capabilities in the 4-channel section and additional power from the subwoofer channel brings your music to life with all the precise details, punchy beats and emotional power. You can also use the amplifier in a 3-channel 2-way system to drive a pair of front high-power speakers, each with 120W RMS, and 300W to power the subwoofer. Adjustable bass boost allows you to further enhance the system's low-frequency sound. You can even add an optional wired remote control to control the bass level from the front seat.
High and low pass filters allow you to control the frequency spectrum that reaches your speakers and subwoofers. The amplifier has preamp and speaker level inputs, so you can install it in almost any vehicle, even one with a factory radio. With speaker level inputs, the amplifier can sense the incoming signal and turn on automatically, eliminating the need to run a separate power cable to your receiver or fuse box.
The S-series includes two mono amplifiers of different power, 4-channel and 5-channel amplifiers.
New 2023 S-Series Amplifiers
Entry-level audio has just been taken to a new level with the S2-A55V 5-channel amplifier. Its sleek body houses an Alpine Class D amplifier and is now Hi-Res Audio certified .
Certified Hi-Res Audio
The next-generation Alpine S-Series S2-A55V 5-channel amplifier is Hi-Res Audio certified and capable of reproducing sound up to 40 kHz. This ultra-wide frequency response, combined with the updated S-Series design, sets a new benchmark for entry-level amplifier performance and price.
Flexible adaptation
The new generation of S-Series amplifiers now feature a new optional remote start circuit, a three-position switch that ensures the amplifier turns on and off at the right time. This design is essential when using the amplifier in newer vehicles and allows for proper integration with any factory or aftermarket audio system.
Easy control access
The amplifier has been specifically designed with audio controls located on the side panels rather than the top panel to make it easier to access the gain and switching controls when the amplifier is mounted under vehicle seats or in shallow areas. Removable rear covers have been added to cover the side controls and connectors, providing a clean, user-friendly finish to the amplifier.
Power the entire system
With its versatile 5-channel design, the S2-A55V amplifier is the perfect all-in-one solution for your entire audio system. This amplifier delivers clear and transparent sound to four speakers and an additional subwoofer for a complete system upgrade.
Designed for S-Series speakers and subwoofers
S-Series amplifiers are designed to perfectly match Alpine's line of S-Series speakers and subwoofers to create the perfect system. S-Series components are designed for customers who want to build a great sound system without spending a fortune to have an entertaining and great sound experience, including Hi-Res Audio capabilities.
New generation Alpine S-series amplifiers: power and performance at a budget price
Check out Alpine Brooks' next-generation Alpine S-Series amplifiers, designed to take your car's audio experience to the next level, but at a reasonable price. These amplifiers deliver exceptional performance and power at an affordable price, with a new sleek design and improved features from the original S-Series amplifiers. If you're looking to upgrade your car's factory sound system, the Alpine S-Series amplifiers could be for you.
00:00 - Intro
00:26 - Hi-Res Audio Certified
00:56 - Models & Overview
01:12 - Key Features of the 4 & 5 Channel Amps
02:41 - Key Features of Mono Amps
03:55 - Wrap Up
Techniniai duomenys
FEATURES
Install
Terminal Layout: Two-sided
Terminal covers included
Screw terminals (for speakers and power cables)
General
Class-D Amplification (Digital)
Hi-Res Audio Certified
Channel Design: 5/4/3 Channel
Side panel controls
Thermal Management Control
Top Mounted LED Power/Status Indicator
Speaker Level Input
3 turn-on modes (DC HI, Remote HI, Remote LO)
Input Channel Selector Switch for Subwoofer
Crossover: Variable Low-pass Filter (LPF) and High-Pass Filter (HPF),
Adjustable Gain Control
Bass EQ
Remote Bass Control ( RUX-KNOB2 ) Ready (for channel 5 only)
SPECIFICATIONS
RMS Power Ratings
Per Channel into 2 Ohms, 14.4V (≤1%THD+N): 4 x 60W + 1 x 300W
Per Channel into 4 Ohms, 14.4V (≤1%THD+N): 4 x 40W + 1 x 200W
Bridged, 4 Ohms, 14.4V: 2 x 120W
Sound Tuning
Crossover: Variable HPF/LPF: 50-400Hz (-12dB/oct / -24dB/oct for subwoofer)
Bass EQ (50Hz bass boost up to +12dB)
General
Power Requirements: 14.4 V.DC (9 - 16 V allowable)
Input Sensitivity (RCA Input): Hi: 0.5V - 10V / Low: 0.2V - 4.0V
High Level Input with automatic power on
Frequency Response: 10Hz - 40kHz
THD+N (@ 10W into 4 Ohms): <0.03%
Damping Factor: >100 (speaker channels) / > 750 (subwoofer channel)
Weight: 3.2kg
Dimensions
Heat Sink (WxHxD) mm: 302 x 57 x 210
