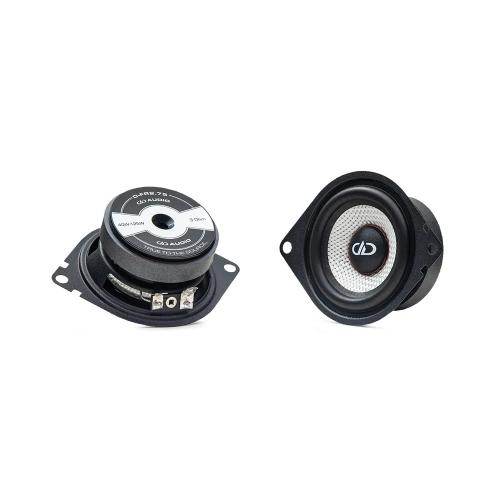

DD Audio D-FR2.75, pilno diapazono automobiliniai garsiakalbiai, 70 mm, 40 W RMS / 125 W MAX, 3 Ω, pora

DD Audio D-FR2.75 - kompaktiškas 2,75" / 70 mm pilno diapazono automobilinis garsiakalbis, skirtas montuoti prietaisų skydelyje ar papildomose durų vietose. 40 W RMS / 125 W maksimali galia, 3 Ω varža ir 120 Hz–20 kHz dažnių diapazonas užtikrina detalų, aiškų ir subalansuotą garsą nedidelio formato garsiakalbyje.

Pagrindinės savybės

2,75" / 70 mm pilno diapazono garsiakalbis
40 W RMS / 125 W MAX
3 Ω varža
120 Hz–20 kHz dažnių diapazonas
84 dB jautrumas
Stiklo pluošto kompozito membrana
Lengva variniu sluoksniu dengta aliuminio balso ritė
Aukštos kokybės feritinis magnetas
Guminis membranos apvadas
Mažos induktyvumo konstrukcija

From the motors up the D Series coaxial and component speakers are truly designed for your listening pleasure. If you’re wanting to level up your aftermarket sound experience, these speakers deliver louder and more detailed sound from factory locations. Utilizing high grade ferrite motors to drive the ultralight copper clad aluminum coil and moving soft parts, results in precision output. The low inductance design elements, such as copper cap shorting rings and non-inductive coil formers, further enhance the phenomenal performance of this collection of speakers. The cones are formed from fiberglass cloth impregnated with lightweight resin to form ultralight rigid curvilinear cones coupled to rubber surrounds. Poly cotton spiders ensure precise alignment with smooth excursion. Soft rubber dust caps on midrange drivers cancel out unwanted resonances.

Typical 2.75” speaker mounts in the dashboard, or secondary door positions shouldn’t have to sacrifice the full range effect offered by coaxials. The D-FR2.75 offers a stunning frequency range from 120hz to 20khz, to deliver broad tonality with the punch of a glass composite cone. This high energy, low mass and low inductance design enhances the phenomenal performance of this collection of speakers, the elegant appearance of the speakers truly makes them best in their class.

Techniniai duomenys

2.75″ Full range speakers
Frequency range: 120 Hz - 20 KHz
125W
3 Ohm
Ultralight copper clad aluminum coil
High grade ferrite motor
Speaker Size (In) 2.75
Watts RMS 40
Peak Power 125
Voice Coil Impedance 3 Ohm
Frequency Response (Hz) 120 – 20k
dBSPL 84
Mounting Diameter (In) 2.6
Mounting Diameter (MM) 65.5
Mounting Depth (In) 1.3
Mounting Depth (MM) 32.4
