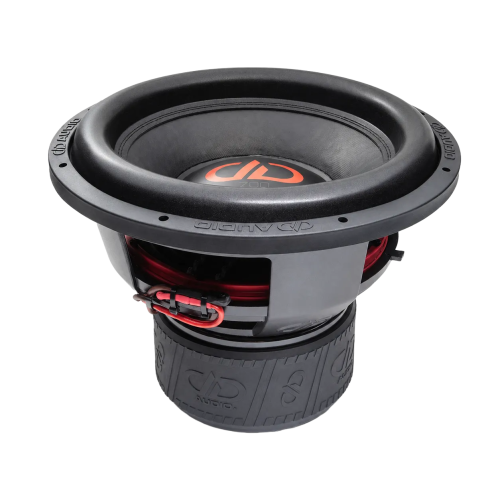

DD Audio 715f D4, žemų dažnių garsiakalbis, 380 mm, 1500 W RMS / 4500 W MAX, 2 × 4 Ω, 1 vnt. | nemokamas siuntimas

DD Audio 715f D4 - galingas 15" / 38 cm „Power Tuned“ žemų dažnių garsiakalbis, skirtas didelės galios automobilinėms garso sistemoms. 1500 W RMS / 4500 W maksimali galia, 3" aukštai temperatūrai atspari balso ritė ir dviguba 2 × 4 Ω ritė leidžia pasiekti stiprų, gilų ir kontroliuojamą bosą.

Pagrindinės savybės

15" / 38 cm žemų dažnių garsiakalbis
1500 W RMS / 4500 W MAX
2 × 4 Ω varža
3" aukštai temperatūrai atspari balso ritė
Trigubas magnetų blokas
Aliuminio šilumos išsklaidymo sistema
Free Flow Cooling aušinimo sistema
Stiklo pluoštu sustiprinta nepresuota membrana
Didelės eigos pakaba
Lieto aliuminio krepšys

The new 700 “G” Revision includes major upgrades to the motor: longer coils, thicker top-plate / deeper gap, and increased magnet assembly.

The mean mother “F” revision of Power Tuned Subwoofers are among DD’s most popular. They were made to get loud, play hard, and go long with a Dual Stage Aluminum Heat Sink, Free Flow Cooling System, tall surrounds double stitched to fiberglass loaded non-pressed cones, and multiple double layer spiders. Available in 10”, 12”, and 15” drivers, the 700f Series were already a perfect, and versatile choice for anyone wanting to bang out hard-hitting bass notes, and that’s exactly why they deserve even more performance enhancements.

Longer coils enable longer strokes, pushing more air in each cycle for high-impact, low-frequency response. To accommodate the longer voice coil, the top plate was made to be thicker with a deeper gap, preserving consistent force further into each stroke while improving coil control, especially as the driver is pushed toward the upper end of the subwoofer bandwidth. The thicker top plate also adds thermal mass and surface area to absorb and dissipate heat, while the deeper gap gives more tolerance for thermal expansion without sacrificing that control. Backing it all up is a larger magnet assembly, delivering the added motor force needed to keep those longer coils firmly in check throughout the extended stroke.

In true DD fashion we’re always challenging what is already great to make it even better.

Techniniai duomenys

15″ subwoofer
3” Hi-Temp Voice Coil
Triple Stack Magnet Motor, 280 oz
4500W
2 x 4 Ohm
Speaker Size (In) 15
Peak Power 4500
VCD (In) 3
Voice Coil Impedance D4
