Audison AVBX 12 D4 II, automobilinė žemų dažnių garso kolonėlė, 30 cm, 550 W RMS / 1100 W MAX, 25–400 Hz, 84.5 dB | nemokamas siuntimas

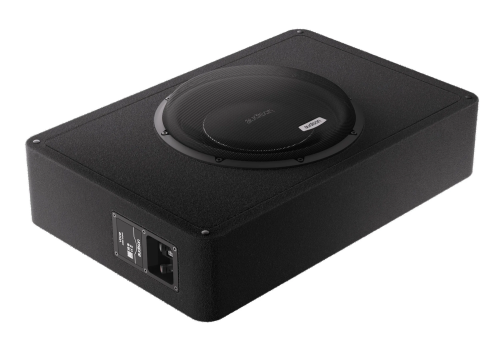

Audison AVBX 12 D4 II - 300 mm (12 colių) pasyvus žemų dažnių garsiakalbis kompaktiškoje uždaro tipo dėžėje, skirtas automobilių garso sistemoms. VOCE II serijos garsiakalbis su dviguba 4 Ω rite užtikrina gilius, tikslius ir kontroliuojamus žemuosius dažnius. Tvirtas 15 mm MDF korpusas su vidiniais sutvirtinimais mažina nepageidaujamas vibracijas, o speciali konstrukcija leidžia dėžę montuoti garsiakalbiu aukštyn arba žemyn. Dėl nedidelio korpuso gylio ir patogios jungčių sistemos šis modelis lengvai pritaikomas įvairių automobilių bagažinėse.

Pagrindinės savybės

300 mm (12 colių) pasyvus žemųjų dažnių garsiakalbis uždaro tipo dėžėje.
550 W RMS nominali ir 1100 W maksimali galia.
Dviguba 4 Ω balso ritė suteikia daugiau prijungimo galimybių.
Kompaktiškas 15 mm MDF korpusas su vidiniais sutvirtinimais.
Uždara konstrukcija užtikrina tikslų ir kontroliuojamą žemųjų dažnių atkūrimą.
Galimybė montuoti garsiakalbiu aukštyn arba žemyn („2S²“ sistema).
„Sub Smart Plug“ jungtis leidžia greitai ir patogiai prijungti laidus.
Polipropileno membrana su žėručio priemaiša užtikrina tvirtumą ir tikslų garso atkūrimą.
Aliumininis garsiakalbio krepšys ir didelio magnetinio srauto feritinis magnetas.

AVBX 12 D4 IISubwoofer Box | Passive sub-box | 300 mm | 1100 W
Designed to deliver impactful low-frequency performance in a refined, space-conscious format, the AVBX 12 D4 II combines the full authority of a 12-inch VOCE II subwoofer with an ultra-compact sealed enclosure optimized for modern vehicle interiors.Equipped with the AV 12 D4 II driver—featuring a dual 4-ohm voice coil—the enclosure provides superior power handling and system flexibility, allowing for high-output configurations without compromising clarity or control.The high-density 15 mm MDF structure, reinforced with internal bracing, ensures excellent mechanical stability and damping, while the sealed design produces tight, extended bass with natural decay and definition. Engineered for true musicality, the enclosure reproduces every nuance of the low-frequency spectrum with depth and precision.Its 2S² dual-orientation architecture allows both Down-Firing and Up-Firing installation, adapting to acoustic goals and available trunk space. The Sub Smart Plug terminal simplifies connections with a hybrid interface offering Plug-&-Play and push-connect options, ready for high-current wiring. Every element of the AVBX 12 D4 II is developed to express the VOCE II vision: no excess, no compromise—just deep, elegant and controlled bass designed to enhance every listening moment on the road.

1. Ultra-shallow sealed enclosure

Engineered to maximize performance in minimal space, providing tight, articulate bass response while preserving valuable vehicle storage volume.

2. High-density 15 mm wooden construction with internal bracing

Built using robust MDF panels and strategic internal bracing, ensuring maximum structural rigidity and suppressing unwanted resonances for clean low-frequency output.

3. 2S² dual-orientation architecture

Allows both Down-Firing and Up-Firing installation, offering installation flexibility depending on acoustic goals and available space.

4. Sub Smart Plug (SSP) terminal with Plug-&-Play and push connectors

Combines quick-disconnect functionality with traditional push terminals, enabling secure, efficient wiring and hassle-free maintenance.

5. Acoustic design matched to VOCE II subwoofers

Precisely tuned internal volume and damping ensure perfect integration with AV 12 D4 II driver for seamless low-frequency performance.

6. Space-efficient footprint for OEM integration

Designed to fit effortlessly in a wide range of vehicles, offering an OEM-friendly solution for discreet yet high-performance bass enhancement.

7. Refined, minimalist styling consistent with VOCE II design language

Combines functionality with elegance, matching the VOCE II speaker aesthetic for a cohesive system appearance.

8. Rigid enclosure damping for accurate transient response

Minimizes box resonances and coloration, ensuring accurate reproduction of kick drums, basslines and low-frequency effects with minimal distortion.

9. High-current connectivity support

Designed to accommodate high-gauge wiring for powerful system configurations without electrical bottlenecks.

10. eID Technology

Integrated Elettromedia eID system allows product registration, technical documentation access and extended warranty activation.

Techniniai duomenys

Nominal diameter
300 mm
Impedance
4+4 Ohm
Power Handling - Peak
1100 W
Power Handling - Continuous
550 W
Sensitivity
84.5 dB
Frequency Response
25-400 Hz
Chassis Material
ALUMINIUM
Magnet Material
HIGH DENSITY FLUX FERRITE
Voice Coil Material
CCAW
Former Material
GLASS FIBER
Cone Material
POLYPROPYLENE WITH MICA INJECTION
Surround Material
RUBBER
Xmax
16.8 mm
Xmech
20 mm
Voice Coil Winding Height
37 mm
Gap Height
7 mm
Driver Displacement Volume
0.9 l
Electric-acoustic Specs
D
539 cm²
Re
1.8 Ohm
Fs
23 Hz
Le
1.8 mH
Vas
63 l
Mms
298 g
Cms
0.15 mm/N
BL
12.2 T•m
Qts
0.5
Qms
6.2
Reference Efficiency
85
Dimensions
AVBX 12 D4 II
Dimension A
607 mm
Dimension B
401 mm
Dimension C
175 mm (6.89 in)
Dimension D
35.2 mm
Dimension C1
133 mm (5.24 in)

Dokumentai

Vartotojo vadovas (EN)
